Home > Products > Switches > Rocker Switches > M2018TNG03

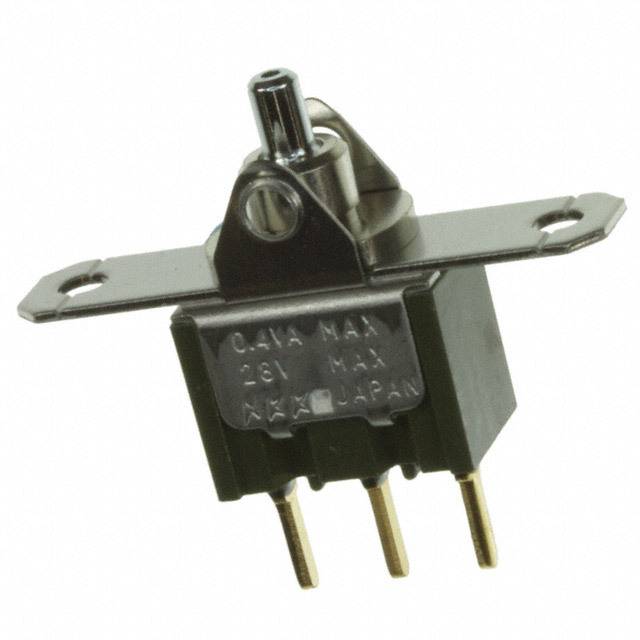

M2018TNG03

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M2018TNG03 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	M2018TNG03
Manufacturer	NKK Switches
Description	SWITCH ROCKER SPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 25703 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.865	$1.778	$1.689	$1.60
	$1.578	$1.533	$1.467	$1.289

Product parameter
Data sheet

Product parameter

Part Number	M2018TNG03	Manufacturer	NKK Switches
Description	SWITCH ROCKER SPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	25703 pcs	Data sheet	M Series, Mini Rocker Flat Frame
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	PC Pin
Switch Function	Mom-Off-Mom	Series	M
Panel Cutout Dimensions	-	Packaging	Bulk
Operating Temperature	-30°C ~ 85°C	Mounting Type	Panel Mount, Flange
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	50,000 Cycles
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	Epoxy Sealed Terminals
Electrical Life	50,000 Cycles	Detailed Description	Rocker Switch SPDT 0.4VA (AC/DC) 28V Panel Mount, Flange
Current Rating	0.4VA (AC/DC)	Color - Actuator/Cap	-
Circuit	SPDT	Actuator Type	Actuator Arm, Cap Required
Actuator Marking	Varies by Cap
