Home > Products > Switches > Rocker Switches > M2015TXG13-DA

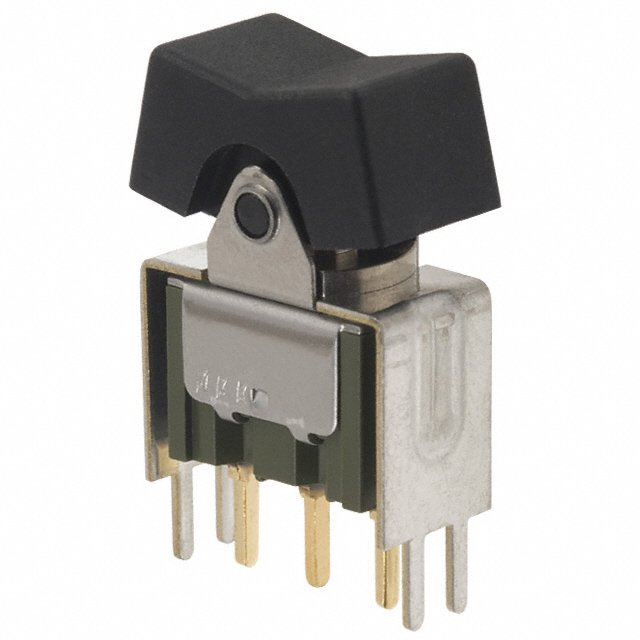

M2015TXG13-DA

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M2015TXG13-DA with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	M2015TXG13-DA
Manufacturer	NKK Switches
Description	SWITCH ROCKER SPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 22624 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$2.006	$1.91	$1.814	$1.719
	$1.695	$1.647	$1.576	$1.385

Product parameter
Data sheet

Product parameter

Part Number	M2015TXG13-DA	Manufacturer	NKK Switches
Description	SWITCH ROCKER SPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	22624 pcs	Data sheet	M Series, Mini Rockers Bracket
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	PC Pin
Switch Function	On-Mom	Series	M
Panel Cutout Dimensions	-	Packaging	Bulk
Other Names	360-2258 M2015TXG13-DA-RO M2015TXG13-DA-RO-ND M2015TXG13DA	Operating Temperature	-30°C ~ 85°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	50,000 Cycles	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	Epoxy Sealed Terminals	Electrical Life	50,000 Cycles
Detailed Description	Rocker Switch SPDT 0.4VA (AC/DC) 28V Through Hole	Current Rating	0.4VA (AC/DC)
Color - Actuator/Cap	Black	Circuit	SPDT
Actuator Type	Concave (Standard V)	Actuator Marking	No Marking
