Home > Products > Switches > Rocker Switches > M2015TJW02-FA-1A

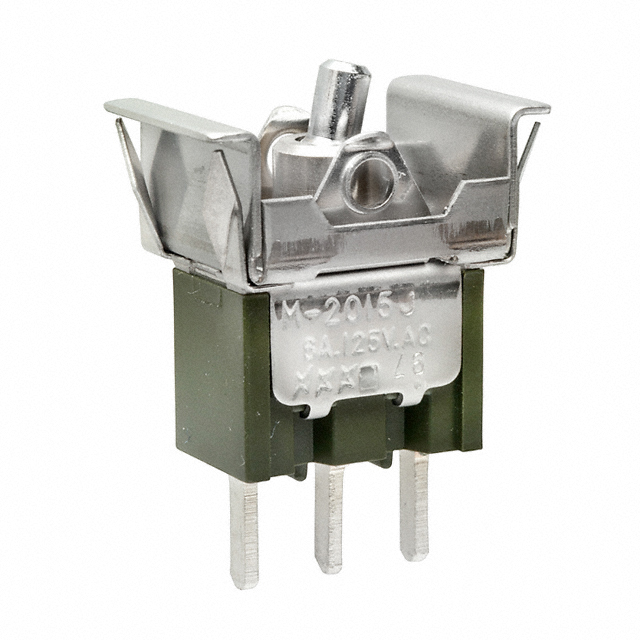

M2015TJW02-FA-1A

M2015TJW02-FA-1A

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M2015TJW02-FA-1A with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	M2015TJW02-FA-1A
Manufacturer	NKK Switches
Description	SWITCH ROCKER SPDT 6A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 14748 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$2.103

Product parameter
Data sheet

Product parameter

Part Number	M2015TJW02-FA-1A	Manufacturer	NKK Switches
Description	SWITCH ROCKER SPDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14748 pcs	Data sheet	M Series Mini Rocker Snap-In Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	Quick Connect - 0.062" (1.5mm)
Switch Function	On-Mom	Series	M
Panel Cutout Dimensions	Rectangular - 15.90mm x 12.50mm	Packaging	Bulk
Other Names	Q4026844 T0642242	Operating Temperature	-30°C ~ 85°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	50,000 Cycles	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	Epoxy Sealed Terminals
Electrical Life	25,000 Cycles	Detailed Description	Rocker Switch SPDT 6A (AC), 3A (DC) 125V Panel Mount, Snap-In
Current Rating	6A (AC), 3A (DC)	Color - Actuator/Cap	Black
Circuit	SPDT	Actuator Type	Concave (Standard V)
Actuator Marking	No Marking
