Home > Products > Switches > Rocker Switches > M2015TJW01

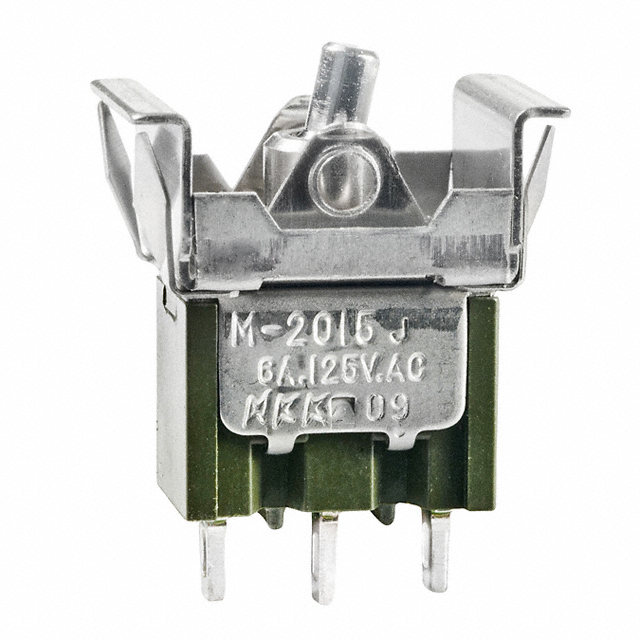

M2015TJW01

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M2015TJW01 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	M2015TJW01
Manufacturer	NKK Switches
Description	SWITCH ROCKER SPDT 6A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 27666 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.638	$1.60	$1.524	$1.448
	$1.371	$1.333	$1.295	$1.143

Product parameter
Data sheet

Product parameter

Part Number	M2015TJW01	Manufacturer	NKK Switches
Description	SWITCH ROCKER SPDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	27666 pcs	Data sheet	M Series Mini Rocker Snap-In Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	Solder Lug
Switch Function	On-Mom	Series	M
Panel Cutout Dimensions	Rectangular - 15.90mm x 12.50mm	Packaging	Bulk
Operating Temperature	-30°C ~ 85°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	50,000 Cycles
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	Epoxy Sealed Terminals
Electrical Life	25,000 Cycles	Detailed Description	Rocker Switch SPDT 6A (AC), 3A (DC) 125V Panel Mount, Snap-In
Current Rating	6A (AC), 3A (DC)	Color - Actuator/Cap	-
Circuit	SPDT	Actuator Type	Actuator Arm, Cap Required
Actuator Marking	Varies by Cap
