Home > Products > Switches > Rocker Switches > M2013TNW01

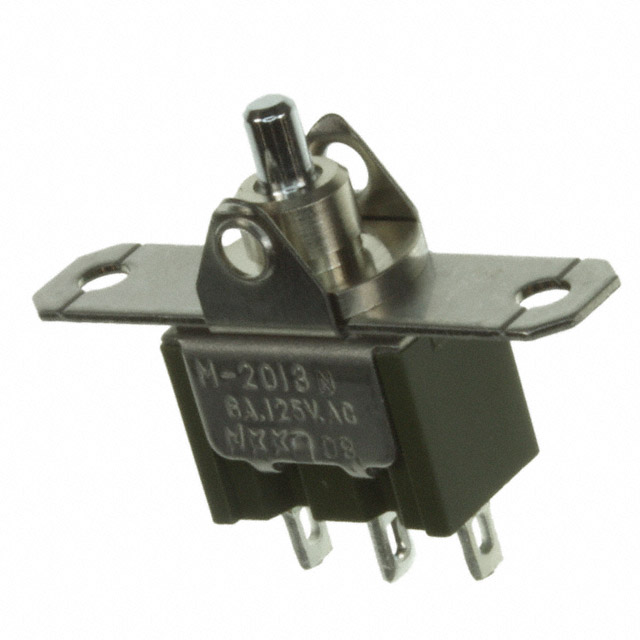

M2013TNW01

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M2013TNW01 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	M2013TNW01
Manufacturer	NKK Switches
Description	SWITCH ROCKER SPDT 6A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 29664 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.477	$1.441	$1.373	$1.304
	$1.235	$1.201	$1.167	$1.029

Product parameter
Data sheet

Product parameter

Part Number	M2013TNW01	Manufacturer	NKK Switches
Description	SWITCH ROCKER SPDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	29664 pcs	Data sheet	M Series, Mini Rocker Flat Frame
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	Solder Lug
Switch Function	On-Off-On	Series	M
Panel Cutout Dimensions	-	Packaging	Bulk
Operating Temperature	-30°C ~ 85°C	Mounting Type	Panel Mount, Flange
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	50,000 Cycles
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	Epoxy Sealed Terminals
Electrical Life	25,000 Cycles	Detailed Description	Rocker Switch SPDT 6A (AC), 3A (DC) 125V Panel Mount, Flange
Current Rating	6A (AC), 3A (DC)	Color - Actuator/Cap	-
Circuit	SPDT	Actuator Type	Actuator Arm, Cap Required
Actuator Marking	Varies by Cap
