Home > Products > Switches > Rocker Switches > M2012TXG13

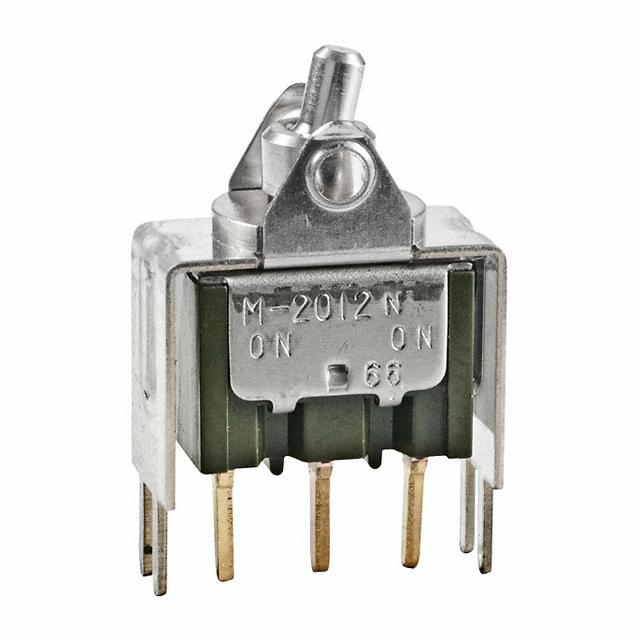

M2012TXG13

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M2012TXG13 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	M2012TXG13
Manufacturer	NKK Switches
Description	SWITCH ROCKER SPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	300 pcs	500 pcs	1000 pcs
~~In Stock~~ 31185 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.525	$1.489	$1.418	$1.347
	$1.276	$1.241	$1.205	$1.064

Product parameter
Data sheet

Product parameter

Part Number	M2012TXG13	Manufacturer	NKK Switches
Description	SWITCH ROCKER SPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	31185 pcs	Data sheet	M Series, Mini Rockers Bracket
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	PC Pin
Switch Function	On-On	Series	M
Panel Cutout Dimensions	-	Packaging	Bulk
Other Names	M2012TXG13-RO M2012TXG13-RO-ND	Operating Temperature	-30°C ~ 85°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	50,000 Cycles	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	Epoxy Sealed Terminals	Electrical Life	50,000 Cycles
Detailed Description	Rocker Switch SPDT 0.4VA (AC/DC) 28V Through Hole	Current Rating	0.4VA (AC/DC)
Color - Actuator/Cap	-	Circuit	SPDT
Actuator Type	Actuator Arm, Cap Required	Actuator Marking	Varies by Cap
