Home > Products > Switches > Toggle Switches > M2012SS1W15/214

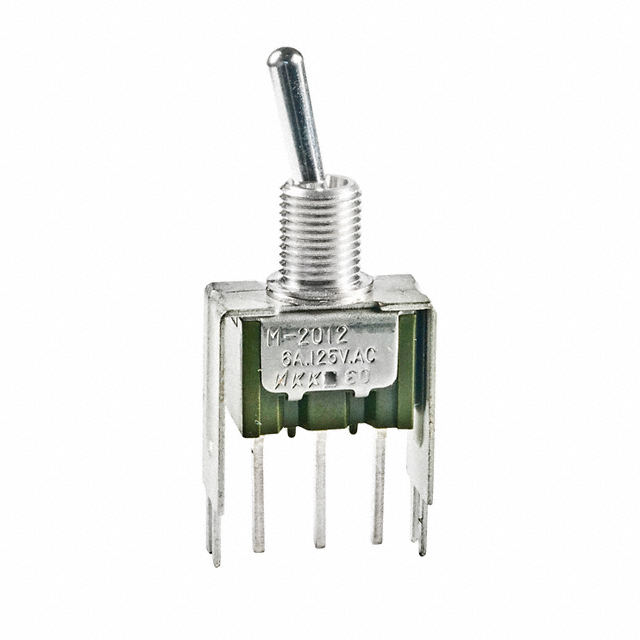

M2012SS1W15/214

M2012SS1W15/214

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M2012SS1W15/214 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	M2012SS1W15/214
Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPDT 6A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 19429 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$1.566

Product parameter
Data sheet

Product parameter

Part Number	M2012SS1W15/214	Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	19429 pcs	Data sheet	M Series Mini Toggles
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	PC Pin
Switch Function	On-On	Series	M
Panel Cutout Dimensions	Circular - 6.50mm Dia	Packaging	Bulk
Other Names	M2012SS1W15/214-RO M2012SS1W15/214-RO-ND	Operating Temperature	-30°C ~ 85°C
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Epoxy Sealed Terminals	Electrical Life	25,000 Cycles
Detailed Description	Toggle Switch SPDT Panel Mount	Current Rating	6A (AC), 4A (DC)
Circuit	SPDT	Bushing Thread	1/4-40
Actuator Type	Standard Round	Actuator Material	Brass, Chrome Plated
Actuator Length	10.50mm
