Home > Products > Switches > Rocker Switches > LW3125-L100-A

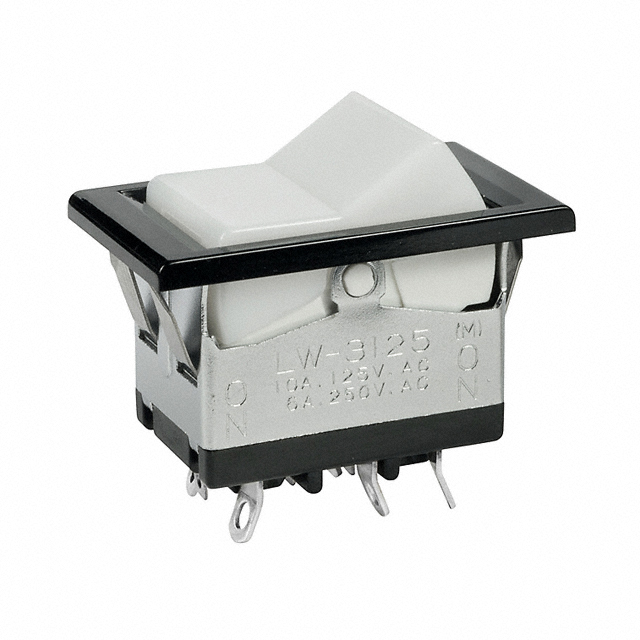

LW3125-L100-A

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LW3125-L100-A with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	LW3125-L100-A
Manufacturer	NKK Switches
Description	SWITCH ROCKER DPDT 10A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 6766 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$7.29	$6.713	$6.521	$6.33
	$6.138	$5.562	$5.179

Product parameter
Data sheet

Product parameter

Part Number	LW3125-L100-A	Manufacturer	NKK Switches
Description	SWITCH ROCKER DPDT 10A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6766 pcs	Data sheet	LW Power-Rated Snap-in Rockers
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	Solder Lug
Switch Function	On-Mom	Series	LW
Panel Cutout Dimensions	Rectangular - 32.00mm x 19.80mm	Packaging	Bulk
Other Names	LW3125-L100-A-RO LW3125-L100-A-RO-ND LW3125L100A	Operating Temperature	-20°C ~ 50°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	30,000 Cycles	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	28 VAC	Illumination Type, Color	Incandescent, White
Features	-	Electrical Life	10,000 Cycles
Detailed Description	Rocker Switch DPDT 10A (AC), 6A (DC) 125V Panel Mount, Snap-In	Current Rating	10A (AC), 6A (DC)
Color - Actuator/Cap	White	Circuit	DPDT
Actuator Type	Concave (Standard V) - Illuminated	Actuator Marking	No Marking
