Home > Products > Switches > Rocker Switches > LW3122

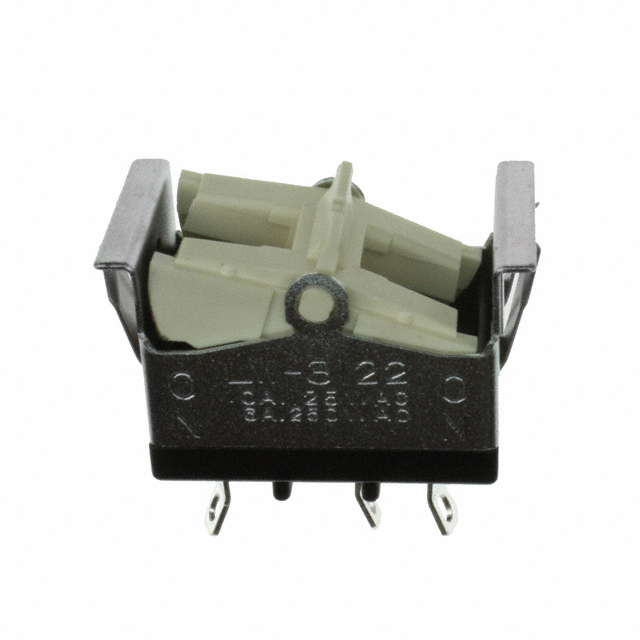

LW3122

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LW3122 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	LW3122
Manufacturer	NKK Switches
Description	SWITCH ROCKER DPDT 10A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 10188 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$4.787	$4.309	$4.189	$4.069
	$3.95	$3.83	$3.351	$3.172

Product parameter
Data sheet

Product parameter

Part Number	LW3122	Manufacturer	NKK Switches
Description	SWITCH ROCKER DPDT 10A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10188 pcs	Data sheet	LW Power-Rated Snap-in Rockers
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	Solder Lug
Switch Function	On-On	Series	LW
Panel Cutout Dimensions	Rectangular - 32.00mm x 19.80mm	Packaging	Bulk
Operating Temperature	-20°C ~ 50°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	30,000 Cycles
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	-
Electrical Life	10,000 Cycles	Detailed Description	Rocker Switch DPDT 10A (AC), 6A (DC) 125V Panel Mount, Snap-In
Current Rating	10A (AC), 6A (DC)	Color - Actuator/Cap	-
Circuit	DPDT	Actuator Type	Actuator Arm, Cap Required
Actuator Marking	Varies by Cap
