Home > Products > Switches > Pushbutton Switches > LB26SKG01

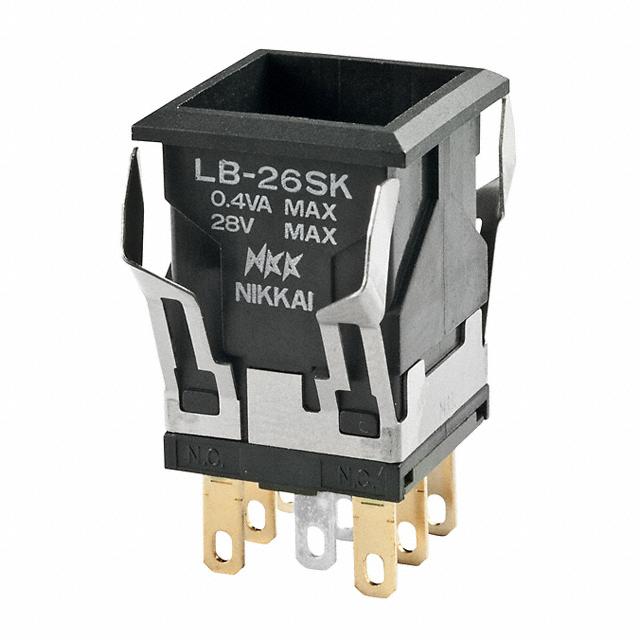

LB26SKG01

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LB26SKG01 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	LB26SKG01
Manufacturer	NKK Switches
Description	SWITCH PUSH DPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 10662 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$4.771	$4.52	$4.457	$4.143
	$4.081	$3.641	$3.516	$3.39

Product parameter
Data sheet

Product parameter

Part Number	LB26SKG01	Manufacturer	NKK Switches
Description	SWITCH PUSH DPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10662 pcs	Data sheet	LB Series Snap-in Pushbuttons
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Type	Standard
Termination Style	Solder, Quick Connect - 0.110" (2.8mm)	Switch Function	On-On
Series	LB	Panel Cutout Dimensions	Square - 16.20mm²
Packaging	Bulk	Operating Temperature	-25°C ~ 70°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	200,000 Cycles	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	-	Electrical Life	100,000 Cycles
Detailed Description	Pushbutton Switch DPDT Standard Panel Mount, Snap-In	Current Rating	0.4VA (AC/DC)
Color - Actuator/Cap	-	Circuit	DPDT
Actuator Type	Plunger for Cap
