Home > Products > Switches > Pushbutton Switches > LB25SKW01

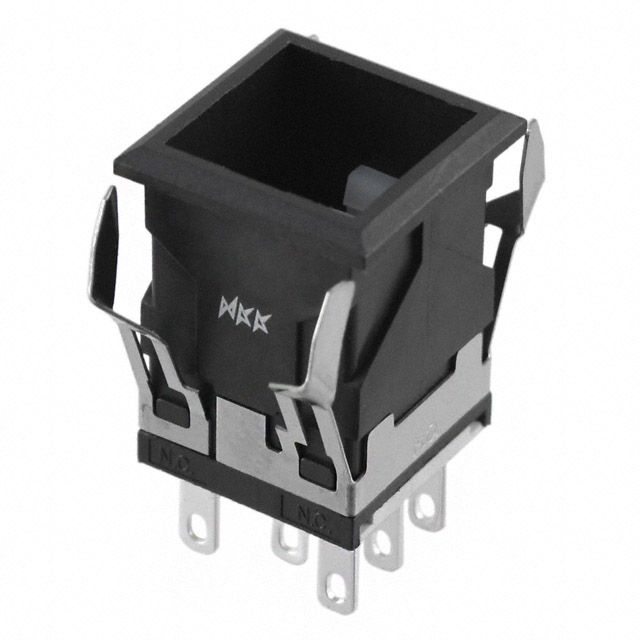

LB25SKW01

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LB25SKW01 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	LB25SKW01
Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 3A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 13216 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$3.823	$3.536	$3.441	$3.25
	$3.154	$2.963	$2.772	$2.628

Product parameter
Data sheet

Product parameter

Part Number	LB25SKW01	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 3A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	13216 pcs	Data sheet	LB Series Snap-in Pushbuttons
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Type	Standard
Termination Style	Solder, Quick Connect - 0.110" (2.8mm)	Switch Function	On-Mom
Series	LB	Panel Cutout Dimensions	Square - 16.20mm²
Packaging	Bulk	Operating Temperature	-25°C ~ 70°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	1,000,000 Cycles	Manufacturer Standard Lead Time	5 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	-	Electrical Life	100,000 Cycles
Detailed Description	Pushbutton Switch DPDT Standard Panel Mount, Snap-In	Current Rating	3A (AC/DC)
Color - Actuator/Cap	-	Circuit	DPDT
Actuator Type	Plunger for Cap
