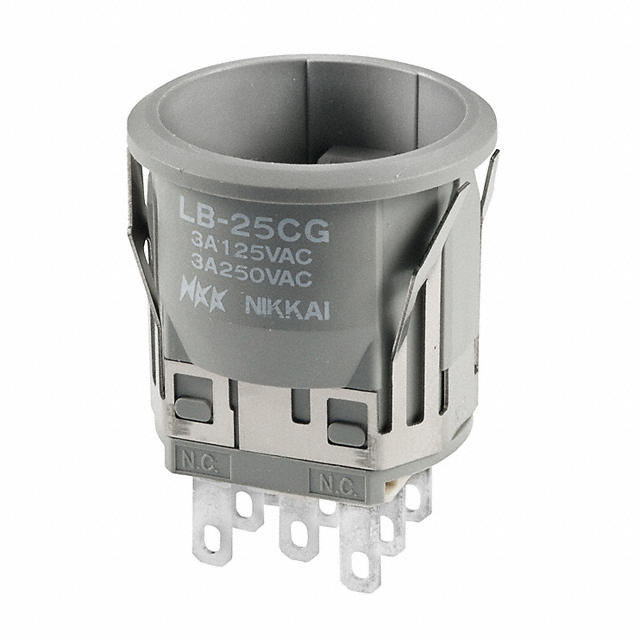

LB25CGW01
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LB25CGW01 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LB25CGW01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LB25CGW01 |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH PUSHBUTTON DPDT 3A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.88 | $3.589 | $3.492 | $3.298 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.201 | $3.007 | $2.813 | $2.667 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | LB25CGW01 | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH PUSHBUTTON DPDT 3A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11315 pcs | Data sheet | LB Series Datasheet |
| Category | Switches | Voltage Rating - DC | 30V |
| Voltage Rating - AC | 125V | Type | Standard |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) | Switch Function | On-Mom |
| Series | LB | Panel Cutout Dimensions | Circular - 22.00mm Dia |
| Packaging | Bulk | Other Names | LB25CGW01-RO LB25CGW01-RO-ND |
| Operating Temperature | -25°C ~ 70°C | Mounting Type | Panel Mount, Snap-In |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 1,000,000 Cycles |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Features | - |
| Electrical Life | 100,000 Cycles | Detailed Description | Pushbutton Switch DPDT Standard Panel Mount, Snap-In |
| Current Rating | 3A (AC/DC) | Color - Actuator/Cap | - |
| Circuit | DPDT | Actuator Type | Plunger for Cap |
