Home > Products > Switches > Pushbutton Switches > LB16RKW01-5F-JF

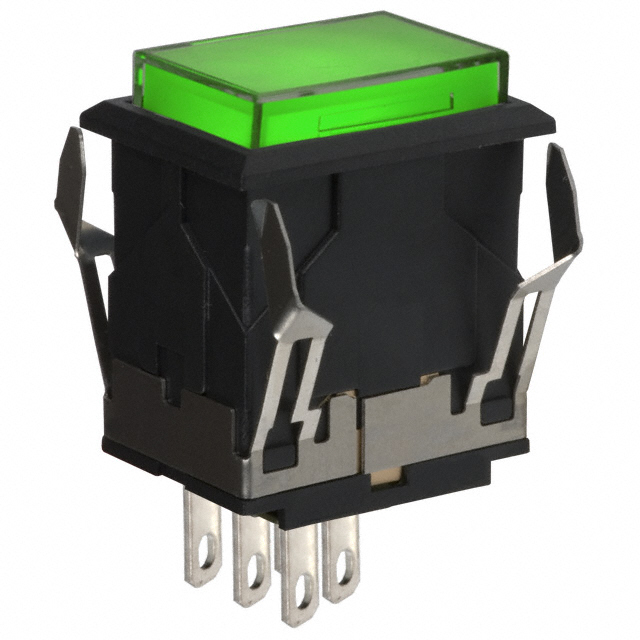

LB16RKW01-5F-JF

LB16RKW01-5F-JF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LB16RKW01-5F-JF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	LB16RKW01-5F-JF
Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON SPDT 3A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 11807 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$4.525	$4.286	$4.226	$3.929
	$3.869	$3.452	$3.333	$3.214

Product parameter
Data sheet

Product parameter

Part Number	LB16RKW01-5F-JF	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON SPDT 3A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11807 pcs	Data sheet	LB Series Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Type	Standard, Illuminated
Termination Style	Solder, Quick Connect - 0.110" (2.8mm)	Switch Function	On-On
Series	LB	Panel Cutout Dimensions	Rectangular - 22.40mm x 16.20mm
Packaging	Bulk	Other Names	360-1672 360-1672-ND 360-2034 LB16RKW01-5F-JF-RO LB16RKW015FJF
Operating Temperature	-25°C ~ 50°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	200,000 Cycles
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	2.1 VDC
Illumination Type, Color	LED, Green	Features	-
Electrical Life	100,000 Cycles	Detailed Description	Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Snap-In
Current Rating	3A (AC/DC)	Color - Actuator/Cap	Clear (Green Filter/Diffuser)
Circuit	SPDT	Actuator Type	Rectangular, Button
