Home > Products > Switches > Pushbutton Switches > LB16CGG01

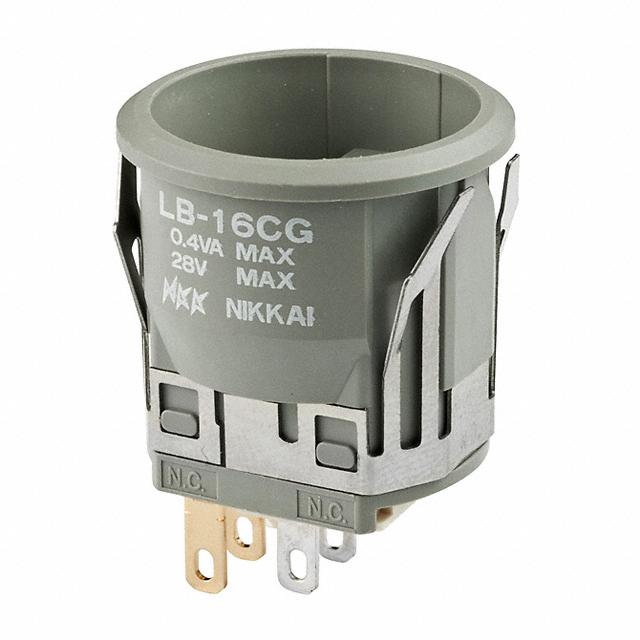

LB16CGG01

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LB16CGG01 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	LB16CGG01
Manufacturer	NKK Switches
Description	SWITCH PUSH SPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 11547 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$3.913	$3.62	$3.522	$3.326
	$3.228	$3.033	$2.837	$2.69

Product parameter
Data sheet

Product parameter

Part Number	LB16CGG01	Manufacturer	NKK Switches
Description	SWITCH PUSH SPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11547 pcs	Data sheet	LB Series Snap-in Pushbuttons
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Type	Standard
Termination Style	Solder, Quick Connect - 0.110" (2.8mm)	Switch Function	On-On
Series	LB	Panel Cutout Dimensions	Circular - 22.00mm Dia
Packaging	Bulk	Operating Temperature	-25°C ~ 70°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	200,000 Cycles	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	-	Electrical Life	100,000 Cycles
Detailed Description	Pushbutton Switch SPDT Standard Panel Mount, Snap-In	Current Rating	0.4VA (AC/DC)
Color - Actuator/Cap	-	Circuit	SPDT
Actuator Type	Plunger for Cap
