Home > Products > Switches > Pushbutton Switches > LB15WKW01-FJ

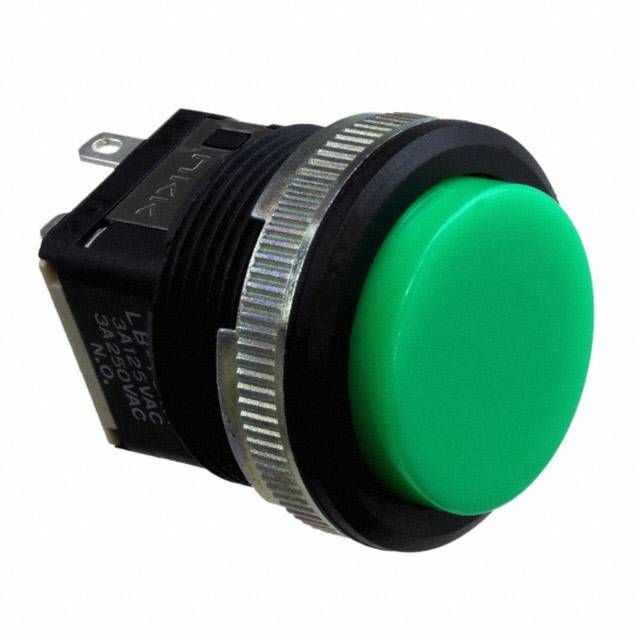

LB15WKW01-FJ

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LB15WKW01-FJ with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	LB15WKW01-FJ
Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON SPDT 3A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 11230 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$4.539	$4.299	$4.239	$3.941
	$3.881	$3.463	$3.344	$3.224

Product parameter
Data sheet

Product parameter

Part Number	LB15WKW01-FJ	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON SPDT 3A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11230 pcs	Data sheet	LB Series Panel Seal Pushbuttons
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Type	Standard
Termination Style	Solder, Quick Connect - 0.110" (2.8mm)	Switch Function	On-Mom
Series	LB	Panel Cutout Dimensions	Circular - 22.00mm Dia
Packaging	Bulk	Other Names	360-3362 LB15WKW01-00-FJ LB15WKW01-00-FJ-ND LB15WKW01-FJ-ND
Operating Temperature	-25°C ~ 70°C	Mounting Type	Panel Mount, Front
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	1,000,000 Cycles
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP65 - Dust Tight, Water Resistant	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	-
Electrical Life	100,000 Cycles	Detailed Description	Pushbutton Switch SPDT Standard Panel Mount, Front
Current Rating	3A (AC/DC)	Color - Actuator/Cap	Green
Circuit	SPDT	Actuator Type	Round, Button
