Home > Products > Switches > Pushbutton Switches > KB26KKG01-5C05-JC

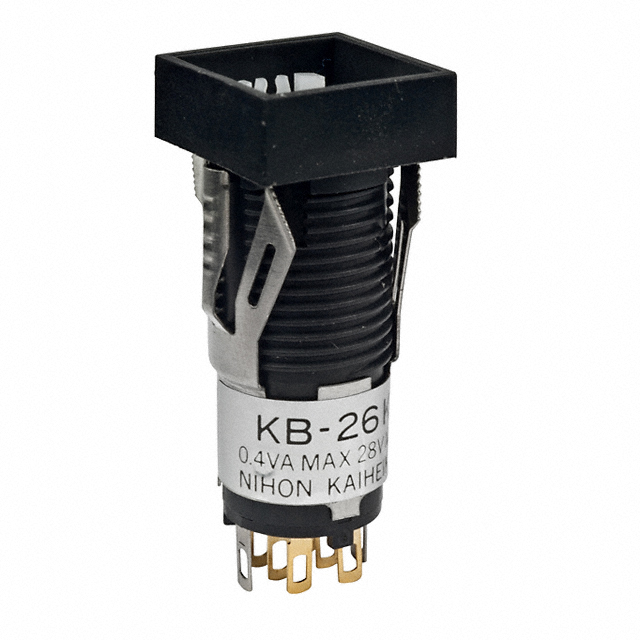

KB26KKG01-5C05-JC

KB26KKG01-5C05-JC

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy KB26KKG01-5C05-JC with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	KB26KKG01-5C05-JC
Manufacturer	NKK Switches
Description	SWITCH PUSH DPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 6820 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$5.792

Product parameter
Data sheet

Product parameter

Part Number	KB26KKG01-5C05-JC	Manufacturer	NKK Switches
Description	SWITCH PUSH DPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6820 pcs	Data sheet	KB Series PushButton ILLUM Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Type	Standard, Illuminated
Termination Style	Solder Lug	Switch Function	On-On
Series	KB	Panel Cutout Dimensions	Circular - 12.30mm Dia
Packaging	Bulk	Operating Temperature	-25°C ~ 50°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	100,000 Cycles	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	5 VDC	Illumination Type, Color	LED, Red
Features	-	Electrical Life	100,000 Cycles
Detailed Description	Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Snap-In	Current Rating	0.4VA (AC/DC)
Color - Actuator/Cap	Clear (Red Filter/Diffuser)	Circuit	DPDT
Actuator Type	Square, Button
