Home > Products > Switches > Pushbutton Switches > KB25CKW01-12-EB

KB25CKW01-12-EB

KB25CKW01-12-EB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy KB25CKW01-12-EB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	KB25CKW01-12-EB
Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 1A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 7977 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$3.946

Product parameter
Data sheet

Product parameter

Part Number	KB25CKW01-12-EB	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 1A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7977 pcs	Data sheet	KB Series PushButton ILLUM Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Type	Standard, Illuminated
Termination Style	Solder Lug	Switch Function	On-Mom

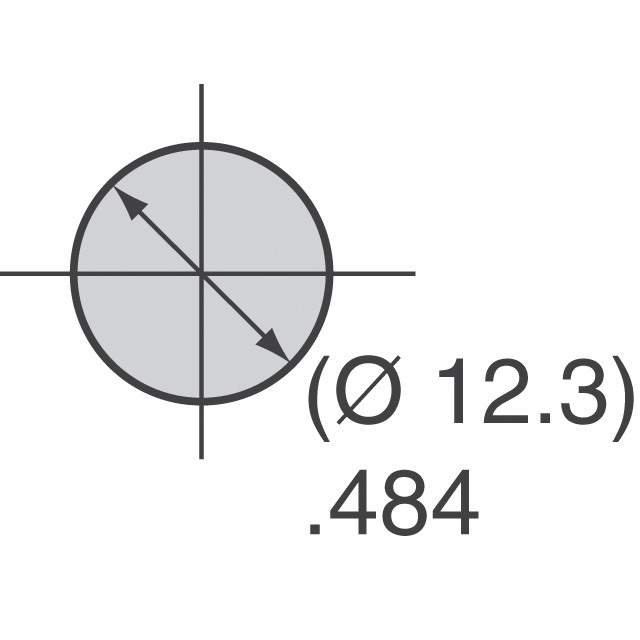

Series	KB	Panel Cutout Dimensions	Circular - 12.30mm Dia
Packaging	Bulk	Operating Temperature	-25°C ~ 50°C
Mounting Type	Panel Mount, Front	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	100,000 Cycles	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	12 VAC
Illumination Type, Color	Incandescent, Yellow	Features	-
Electrical Life	50,000 Cycles	Detailed Description	Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Front
Current Rating	1A (AC/DC)	Color - Actuator/Cap	Yellow (White Filter/Diffuser)
Circuit	DPDT	Actuator Type	Round, Button
