Home > Products > Switches > Pushbutton Switches > KB25CKG01-5F24-JF

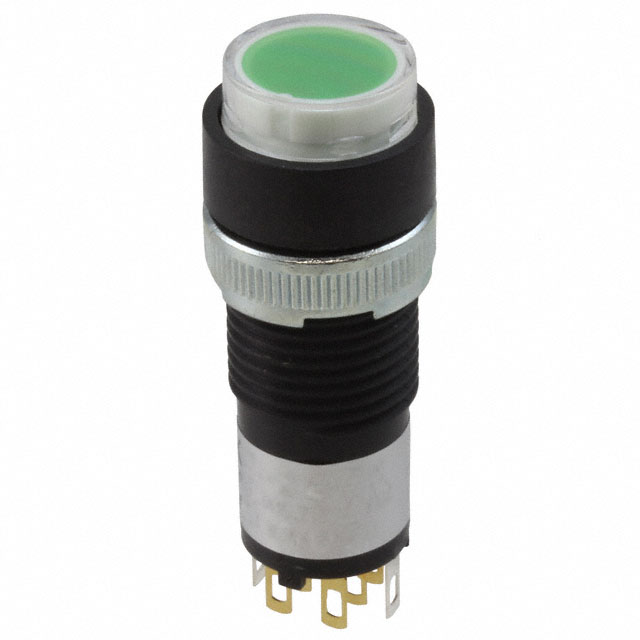

KB25CKG01-5F24-JF

KB25CKG01-5F24-JF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy KB25CKG01-5F24-JF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	KB25CKG01-5F24-JF
Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 6774 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$6.085	$5.765	$5.685	$5.285
	$5.205	$4.644	$4.484

Product parameter
Data sheet

Product parameter

Part Number	KB25CKG01-5F24-JF	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6774 pcs	Data sheet	KB Series PushButton ILLUM Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Type	Standard, Illuminated
Termination Style	Solder Lug	Switch Function	On-Mom
Series	KB	Panel Cutout Dimensions	Circular - 12.30mm Dia
Packaging	Bulk	Other Names	360-3057 KB25CKG01-5F24-JF-ND
Operating Temperature	-25°C ~ 50°C	Mounting Type	Panel Mount, Front
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	100,000 Cycles
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	24 VDC
Illumination Type, Color	LED, Green	Features	-
Electrical Life	100,000 Cycles	Detailed Description	Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Front
Current Rating	0.4VA (AC/DC)	Color - Actuator/Cap	Clear (Green Filter/Diffuser)
Circuit	DPDT	Actuator Type	Round, Button
