Home > Products > Switches > Pushbutton Switches > KB15SKG01-BB

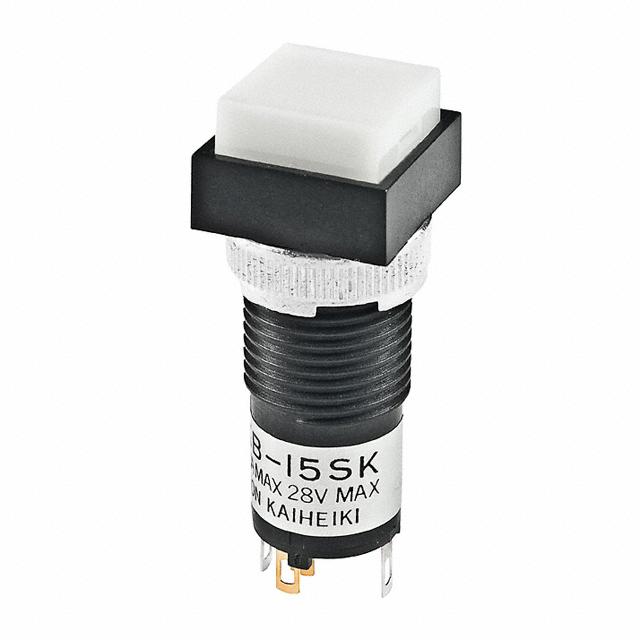

KB15SKG01-BB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy KB15SKG01-BB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	KB15SKG01-BB
Manufacturer	NKK Switches
Description	SWITCH PUSH SPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 11904 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$2.835

Product parameter
Data sheet

Product parameter

Part Number	KB15SKG01-BB	Manufacturer	NKK Switches
Description	SWITCH PUSH SPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11904 pcs	Data sheet	KB Series PushButton ILLUM Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Type	Standard
Termination Style	Solder Lug	Switch Function	On-Mom
Series	KB	Panel Cutout Dimensions	Circular - 12.30mm Dia
Packaging	Bulk	Operating Temperature	-25°C ~ 70°C
Mounting Type	Panel Mount, Front	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	100,000 Cycles	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	-	Electrical Life	100,000 Cycles
Detailed Description	Pushbutton Switch SPDT Standard Panel Mount, Front	Current Rating	0.4VA (AC/DC)
Color - Actuator/Cap	White	Circuit	SPDT
Actuator Type	Square, Button
