Home > Products > Switches > Pushbutton Switches > KB15RKW01B-5F24-JF

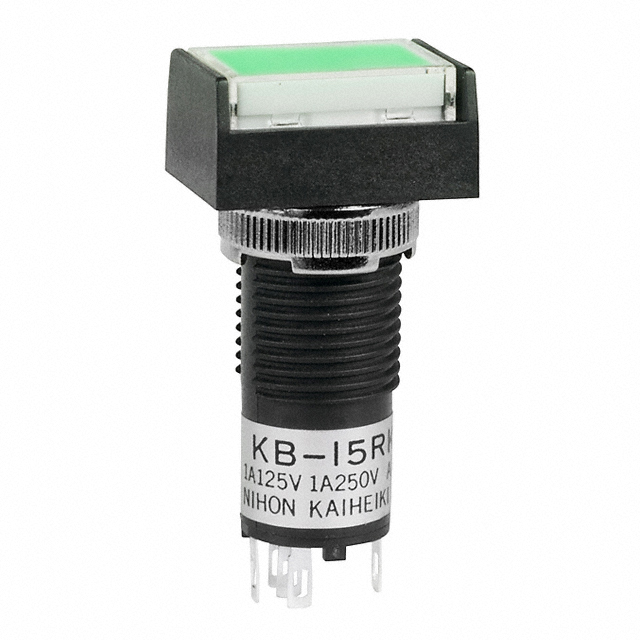

KB15RKW01B-5F24-JF

KB15RKW01B-5F24-JF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy KB15RKW01B-5F24-JF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	KB15RKW01B-5F24-JF
Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON SPDT 1A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 7647 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$5.038

Product parameter
Data sheet

Product parameter

Part Number	KB15RKW01B-5F24-JF	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON SPDT 1A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7647 pcs	Data sheet	KB Series PushButton ILLUM Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Type	Standard, Illuminated
Termination Style	Solder Lug	Switch Function	On-Mom
Series	KB	Panel Cutout Dimensions	Circular - 12.30mm Dia
Packaging	Bulk	Other Names	KB15RKW01B-5F24-JF-RO KB15RKW01B-5F24-JF-RO-ND
Operating Temperature	-25°C ~ 50°C	Mounting Type	Panel Mount, Front
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	100,000 Cycles
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	24 VDC
Illumination Type, Color	LED, Green	Features	With Barrier
Electrical Life	50,000 Cycles	Detailed Description	Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front
Current Rating	1A (AC/DC)	Color - Actuator/Cap	Clear (Green Filter/Diffuser)
Circuit	SPDT	Actuator Type	Rectangular, Button
