Home > Products > Switches > Pushbutton Switches > KB15RKW01-5F24-JF

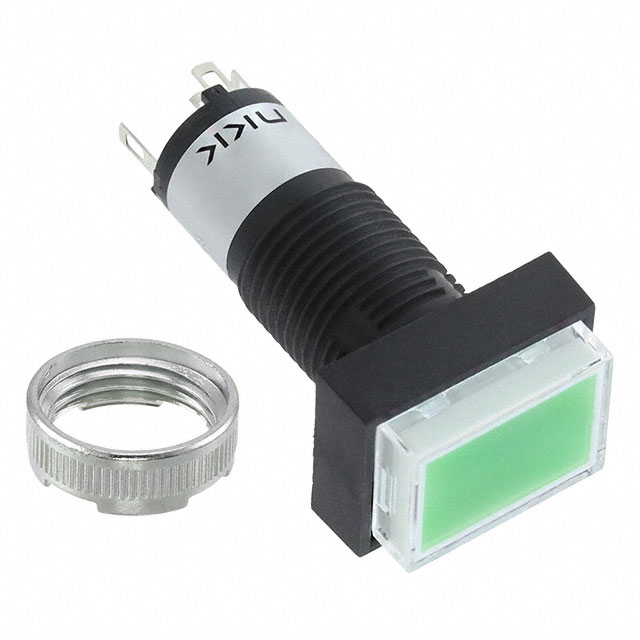

KB15RKW01-5F24-JF

KB15RKW01-5F24-JF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy KB15RKW01-5F24-JF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	KB15RKW01-5F24-JF
Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON SPDT 1A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 8972 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$4.765	$4.515	$4.453	$4.139
	$4.076	$3.637	$3.512	$3.386

Product parameter
Data sheet

Product parameter

Part Number	KB15RKW01-5F24-JF	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON SPDT 1A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	8972 pcs	Data sheet	KB Series PushButton ILLUM Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Type	Standard, Illuminated
Termination Style	Solder Lug	Switch Function	On-Mom
Series	KB	Panel Cutout Dimensions	Circular - 12.30mm Dia
Packaging	Bulk	Other Names	360-3051 KB15RKW01-5F24-JF-ND
Operating Temperature	-25°C ~ 50°C	Mounting Type	Panel Mount, Front
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	100,000 Cycles
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	24 VDC
Illumination Type, Color	LED, Green	Features	-
Electrical Life	50,000 Cycles	Detailed Description	Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front
Current Rating	1A (AC/DC)	Color - Actuator/Cap	Clear (Green Filter/Diffuser)
Circuit	SPDT	Actuator Type	Rectangular, Button
