Home > Products > Switches > Pushbutton Switches > KB15RKW01-12-GB

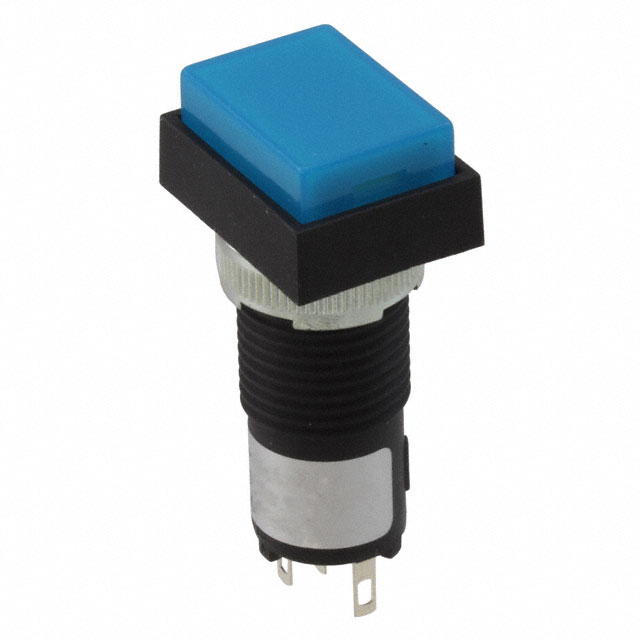

KB15RKW01-12-GB

KB15RKW01-12-GB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy KB15RKW01-12-GB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	KB15RKW01-12-GB
Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON SPDT 1A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 15603 pcs
Reference Price (In US Dollars)	1000 pcs
Reference Price (In US Dollars)	$2.162

Product parameter
Data sheet

Product parameter

Part Number	KB15RKW01-12-GB	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON SPDT 1A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15603 pcs	Data sheet	KB Series PushButton ILLUM Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Type	Standard, Illuminated
Termination Style	Solder Lug	Switch Function	On-Mom
Series	KB	Panel Cutout Dimensions	Circular - 12.30mm Dia
Packaging	Bulk	Other Names	KB15RKW01-12-GB-RO KB15RKW01-12-GB-RO-ND KB15RKW0112GB
Operating Temperature	-25°C ~ 50°C	Mounting Type	Panel Mount, Front
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	100,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	12 VAC	Illumination Type, Color	Incandescent, Blue
Features	-	Electrical Life	50,000 Cycles
Detailed Description	Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front	Current Rating	1A (AC/DC)
Color - Actuator/Cap	Blue (White Filter/Diffuser)	Circuit	SPDT
Actuator Type	Rectangular, Button
