Home > Products > Switches > Pushbutton Switches > KB15KKW01-FF

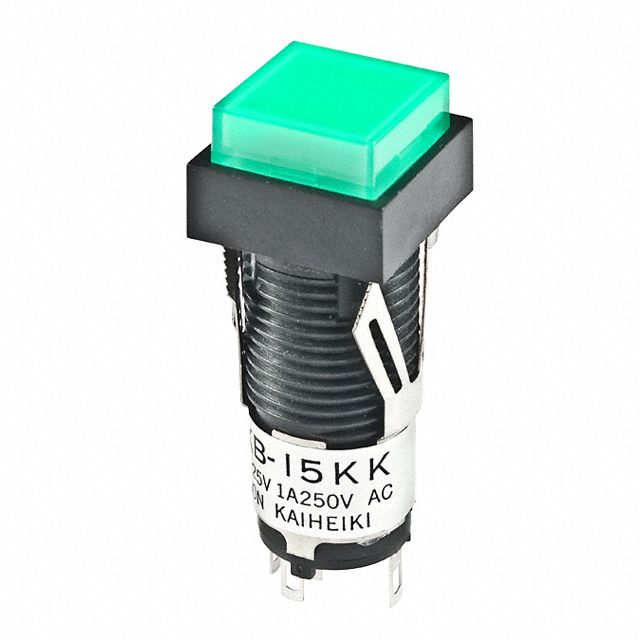

KB15KKW01-FF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy KB15KKW01-FF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	KB15KKW01-FF
Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON SPDT 1A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 12379 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$2.59

Product parameter
Data sheet

Product parameter

Part Number	KB15KKW01-FF	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON SPDT 1A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12379 pcs	Data sheet	KB Series PushButton ILLUM Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Type	Standard
Termination Style	Solder Lug	Switch Function	On-Mom
Series	KB	Panel Cutout Dimensions	Circular - 12.30mm Dia
Packaging	Bulk	Operating Temperature	-25°C ~ 70°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	100,000 Cycles	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	-	Electrical Life	50,000 Cycles
Detailed Description	Pushbutton Switch SPDT Standard Panel Mount, Snap-In	Current Rating	1A (AC/DC)
Color - Actuator/Cap	Green	Circuit	SPDT
Actuator Type	Square, Button
