Home > Products > Switches > Rocker Switches > JWM21RA2A/UCV

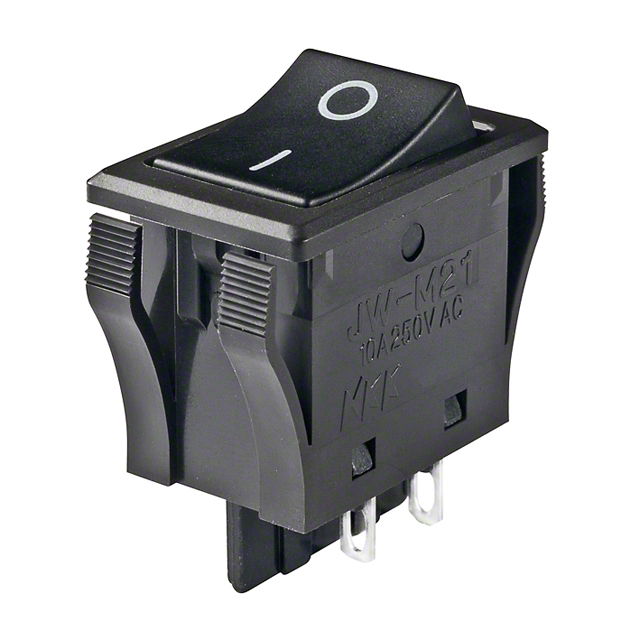

JWM21RA2A/UCV

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JWM21RA2A/UCV with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	JWM21RA2A/UCV
Manufacturer	NKK Switches
Description	SWITCH ROCKER DPST 10A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 19410 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$2.918	$2.703	$2.561	$2.525
	$2.49	$2.419	$2.205	$1.992

Product parameter
Data sheet

Product parameter

Part Number	JWM21RA2A/UCV	Manufacturer	NKK Switches
Description	SWITCH ROCKER DPST 10A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	19410 pcs	Data sheet	JW Series Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	Solder, Quick Connect - 0.110" (2.8mm)	Switch Function	On-Off
Series	JW	Panel Cutout Dimensions	Rectangular - 24.00mm x 15.40mm
Packaging	Bulk	Other Names	JWM21RA2AUCV
Operating Temperature	-25°C ~ 70°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	25,000 Cycles
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	Dust Proof	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	Epoxy Sealed Terminals
Electrical Life	25,000 Cycles	Detailed Description	Rocker Switch DPST 10A (AC) 125V Panel Mount, Snap-In
Current Rating	10A (AC)	Color - Actuator/Cap	Black
Circuit	DPST	Actuator Type	Concave (Curved)
Actuator Marking	O -
