Home > Products > Switches > Rocker Switches > JWM12RAA

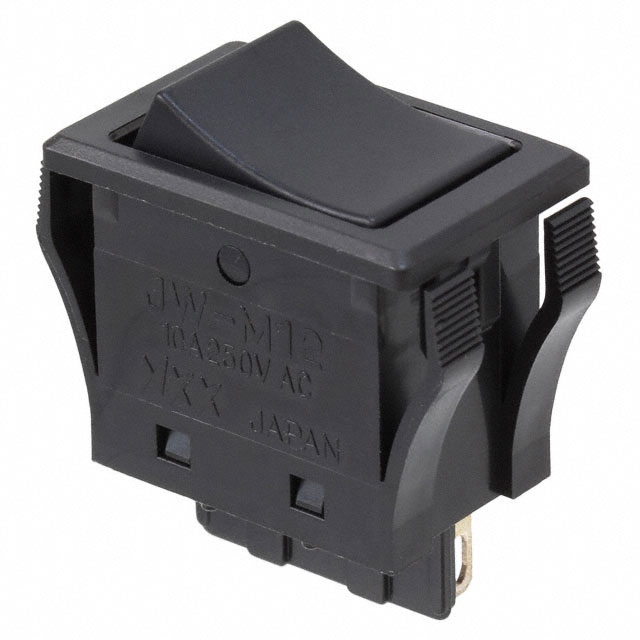

JWM12RAA

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JWM12RAA with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	JWM12RAA
Manufacturer	NKK Switches
Description	SWITCH ROCKER SPDT 10A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 20876 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$2.276	$2.109	$1.998	$1.97
	$1.942	$1.887	$1.72	$1.554

Product parameter
Data sheet

Product parameter

Part Number	JWM12RAA	Manufacturer	NKK Switches
Description	SWITCH ROCKER SPDT 10A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	20876 pcs	Data sheet	JW Series Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	Solder, Quick Connect - 0.110" (2.8mm)	Switch Function	On-On
Series	JW	Panel Cutout Dimensions	Rectangular - 24.00mm x 15.40mm
Packaging	Bulk	Other Names	360-1485
Operating Temperature	-25°C ~ 70°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	25,000 Cycles
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	Dust Proof	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	Epoxy Sealed Terminals
Electrical Life	25,000 Cycles	Detailed Description	Rocker Switch SPDT 10A (AC) 125V Panel Mount, Snap-In
Current Rating	10A (AC)	Color - Actuator/Cap	Black
Circuit	SPDT	Actuator Type	Concave (Curved)
Actuator Marking	No Marking
