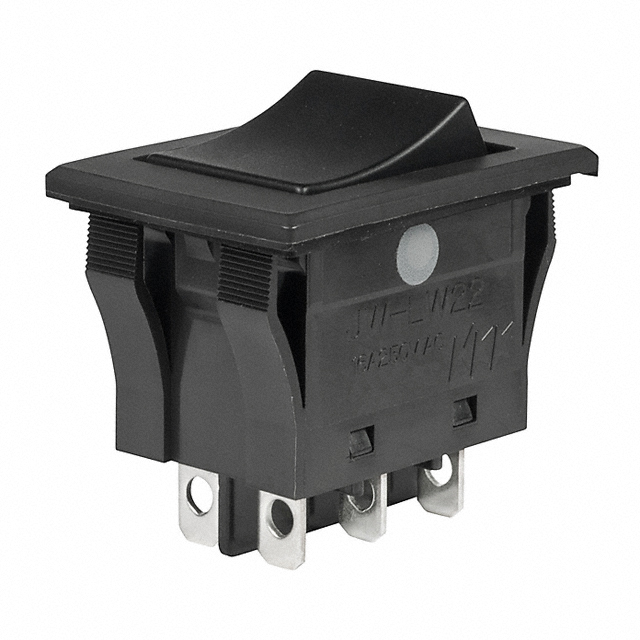

JWLW22RAA
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JWLW22RAA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JWLW22RAA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JWLW22RAA |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH ROCKER DPDT 16A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.545 | $4.09 | $3.977 | $3.863 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.749 | $3.636 | $3.181 | $3.011 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | JWLW22RAA | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH ROCKER DPDT 16A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10775 pcs | Data sheet | JW Series Datasheet |
| Category | Switches | Voltage Rating - AC | 125V |
| Termination Style | Solder, Quick Connect - 0.187" (4.7mm) | Switch Function | On-On |
| Series | JW | Panel Cutout Dimensions | Rectangular - 30.70mm x 20.50mm |
| Packaging | Bulk | Other Names | 360-2538 |
| Operating Temperature | -25°C ~ 85°C | Mounting Type | Panel Mount, Snap-In |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 25,000 Cycles |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Features | Epoxy Sealed Terminals |
| Electrical Life | 25,000 Cycles | Detailed Description | Rocker Switch DPDT 16A (AC) 125V Panel Mount, Snap-In |
| Current Rating | 16A (AC) | Color - Actuator/Cap | Black |
| Circuit | DPDT | Actuator Type | Concave (Curved) |
| Actuator Marking | No Marking |
