Home > Products > Switches > Pushbutton Switches > JPM16B-A

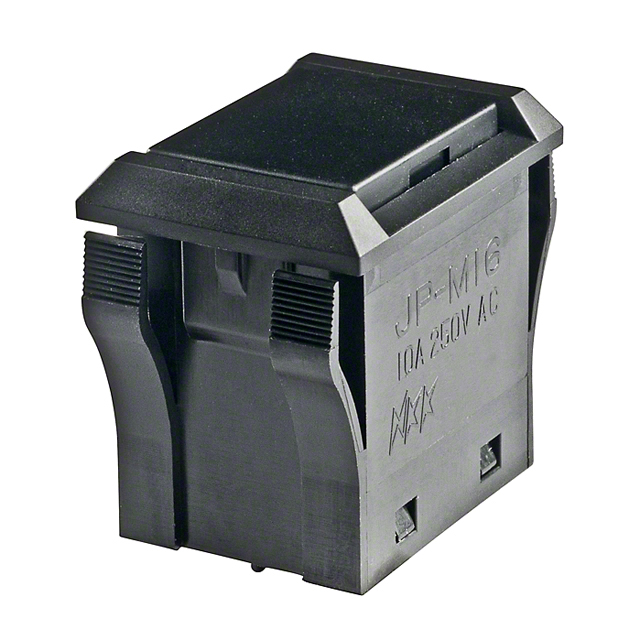

JPM16B-A

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JPM16B-A with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	JPM16B-A
Manufacturer	NKK Switches
Description	SWITCH PUSH SPST 10A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 9668 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$3.396

Product parameter
Data sheet

Product parameter

Part Number	JPM16B-A	Manufacturer	NKK Switches
Description	SWITCH PUSH SPST 10A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	9668 pcs	Data sheet	JP Series Datasheet
Category	Switches	Voltage Rating - AC	125V
Type	Standard	Termination Style	Solder Lug
Switch Function	Off-On	Series	JP
Panel Cutout Dimensions	Rectangular - 28.00mm x 21.20mm	Packaging	Bulk
Other Names	JPM16B-A-RO JPM16B-A-RO-ND	Operating Temperature	-10°C ~ 70°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	25,000 Cycles	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	Tactile Feedback	Electrical Life	25,000 Cycles
Detailed Description	Pushbutton Switch SPST Standard Panel Mount, Snap-In	Current Rating	10A (AC)
Color - Actuator/Cap	Black	Circuit	SPST
Actuator Type	Rectangular, Button
