JPL16B

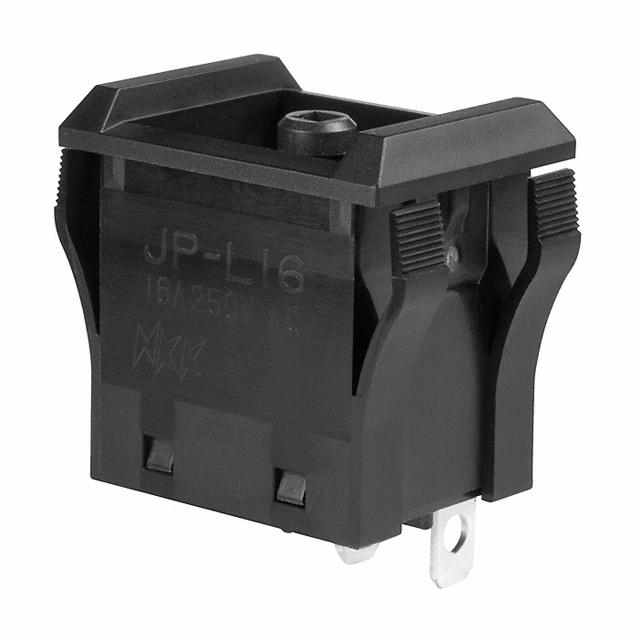

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JPL16B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JPL16B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JPL16B |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH PUSH SPST 16A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.363 | $3.117 | $3.035 | $2.953 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.789 | $2.707 | $2.543 | $2.297 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | JPL16B | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH PUSH SPST 16A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15016 pcs | Data sheet | JP Series Datasheet |
| Category | Switches | Voltage Rating - AC | 125V |
| Type | Standard | Termination Style | Solder Lug |
| Switch Function | Off-On | Series | JP |
| Panel Cutout Dimensions | Rectangular - 28.00mm x 21.20mm | Packaging | Bulk |
| Operating Temperature | -10°C ~ 70°C | Mounting Type | Panel Mount, Snap-In |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 25,000 Cycles |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Features | Tactile Feedback |
| Electrical Life | 25,000 Cycles | Detailed Description | Pushbutton Switch SPST Standard Panel Mount, Snap-In |
| Current Rating | 16A (AC) | Color - Actuator/Cap | - |
| Circuit | SPST | Actuator Type | Rectangular, Button |
