JL15SKSCCP2

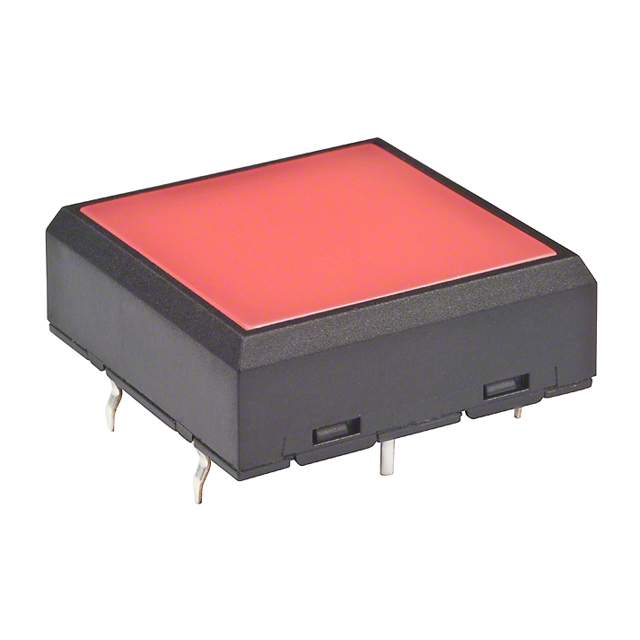

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JL15SKSCCP2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JL15SKSCCP2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JL15SKSCCP2 |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH TACTILE SPST-NO 0.05A 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $6.676 | $6.487 | $6.105 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $5.723 | $5.075 | $4.96 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | JL15SKSCCP2 | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6351 pcs | Data sheet | JL Series Ultra Thin Tactiles |
| Category | Switches | Termination Style | PC Pin |
| Switch Travel | 0.75mm | Switch Function | Off-Mom |
| Series | JL | Packaging | Tray |
| Outline | 22.00mm x 22.00mm | Other Names | JL15SKSCCP2-RO JL15SKSCCP2-RO-ND |
| Operating Temperature | -25°C ~ 50°C | Operating Force | 300gf |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 1,000,000 Cycles | Manufacturer Standard Lead Time | 18 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | 3.9 VDC | Illumination Type, Color | LED, Red |
| Illumination | Illuminated | Features | - |
| Detailed Description | Tactile Switch SPST-NO Top Actuated Through Hole | Contact Rating @ Voltage | 0.05A @ 24VDC |
| Circuit | SPST-NO | Actuator Type | Square Button |
| Actuator Orientation | Top Actuated | Actuator Material | Polycarbonate (PC) |
| Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | 7.85mm |
