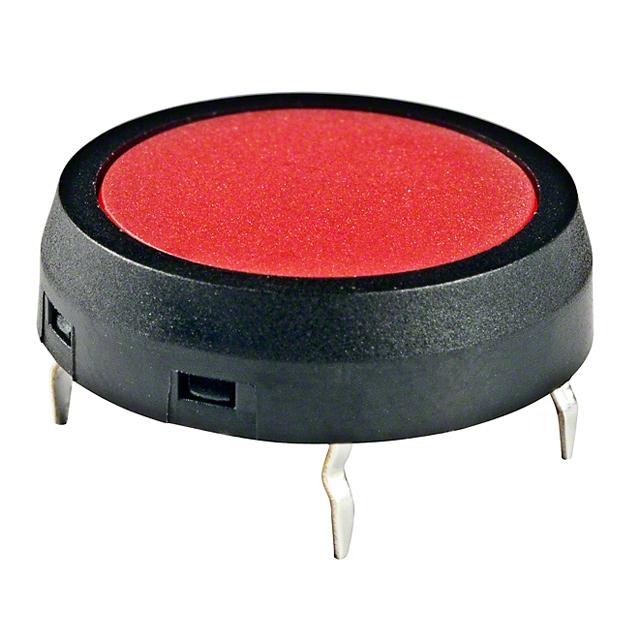

JF15CP2C
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JF15CP2C with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JF15CP2C with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JF15CP2C |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH TACTILE SPST-NO 0.05A 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.103 | $1.06 | $0.975 | $0.848 | $0.806 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.785 | $0.763 | $0.594 | $0.551 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | JF15CP2C | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 70251 pcs | Data sheet | JF Series Ultra Thin Tactiles |
| Category | Switches | Termination Style | PC Pin |
| Switch Travel | 0.40mm | Switch Function | Off-Mom |
| Series | JF | Packaging | Tray |
| Outline | 17.70mm Dia | Operating Temperature | -25°C ~ 85°C |
| Operating Force | 300gf | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 500,000 Cycles |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | Process Sealed |
| Detailed Description | Tactile Switch SPST-NO Top Actuated Through Hole | Contact Rating @ Voltage | 0.05A @ 24VDC |
| Circuit | SPST-NO | Actuator Type | Round Button |
| Actuator Orientation | Top Actuated | Actuator Material | Polyamide (PA), Nylon |
| Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | 5.08mm |
