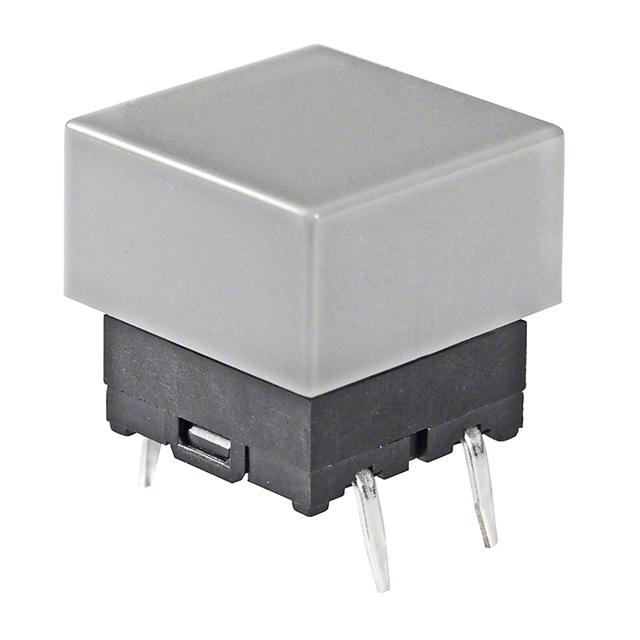

JB15KP-2H
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JB15KP-2H with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JB15KP-2H with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JB15KP-2H |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH TACTILE SPST-NO 0.05A 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.914 | $0.879 | $0.809 | $0.703 | $0.668 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.65 | $0.633 | $0.492 | $0.457 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | JB15KP-2H | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 75630 pcs | Data sheet | JB Series Low Profile Tactiles |
| Category | Switches | Termination Style | PC Pin |
| Switch Travel | 0.25mm | Switch Function | Off-Mom |
| Series | JB | Packaging | Bulk |
| Outline | 10.00mm x 10.00mm | Other Names | 360-3432 JB15KP-2H-ND JB15KP2H |
| Operating Temperature | -25°C ~ 70°C | Operating Force | 176gf |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 5,000,000 Cycles | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | Process Sealed |
| Detailed Description | Tactile Switch SPST-NO Top Actuated Through Hole | Contact Rating @ Voltage | 0.05A @ 24VDC |
| Circuit | SPST-NO | Actuator Type | Square Button |
| Actuator Orientation | Top Actuated | Actuator Material | Polyacetal |
| Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | 11.20mm |
