Home > Products > Switches > Tactile Switches > JB15HKP-2B

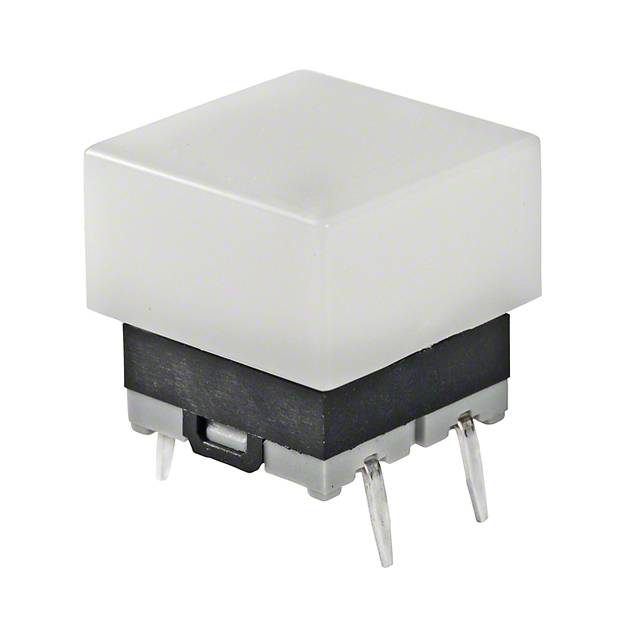

JB15HKP-2B

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JB15HKP-2B with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	JB15HKP-2B
Manufacturer	NKK Switches
Description	SWITCH TACT SPST-NO 0.125A 24V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 50568 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$1.399	$1.344	$1.237	$1.075	$1.022
	$0.995	$0.968	$0.753	$0.699

Product parameter
Data sheet

Product parameter

Part Number	JB15HKP-2B	Manufacturer	NKK Switches
Description	SWITCH TACT SPST-NO 0.125A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	50568 pcs	Data sheet	JB Series Low Profile Tactiles
Category	Switches	Termination Style	PC Pin
Switch Travel	0.30mm	Switch Function	Off-Mom
Series	JB	Packaging	Bulk
Outline	10.00mm x 10.00mm	Other Names	360-2811 JB15HKP-2B-ND JB15HKP2B JB15HKP2B-ND Q2352990
Operating Temperature	-25°C ~ 70°C	Operating Force	265gf
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	1,000,000 Cycles	Manufacturer Standard Lead Time	5 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP67 - Dust Tight, Waterproof
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Process Sealed
Detailed Description	Tactile Switch SPST-NO Top Actuated Through Hole	Contact Rating @ Voltage	0.125A @ 24VDC
Circuit	SPST-NO	Actuator Type	Square Button
Actuator Orientation	Top Actuated	Actuator Material	Polyacetal
Actuator Length, Right Angle	-	Actuator Height off PCB, Vertical	11.20mm
