Home > Products > Switches > Rotary Switches > HS16-2SN

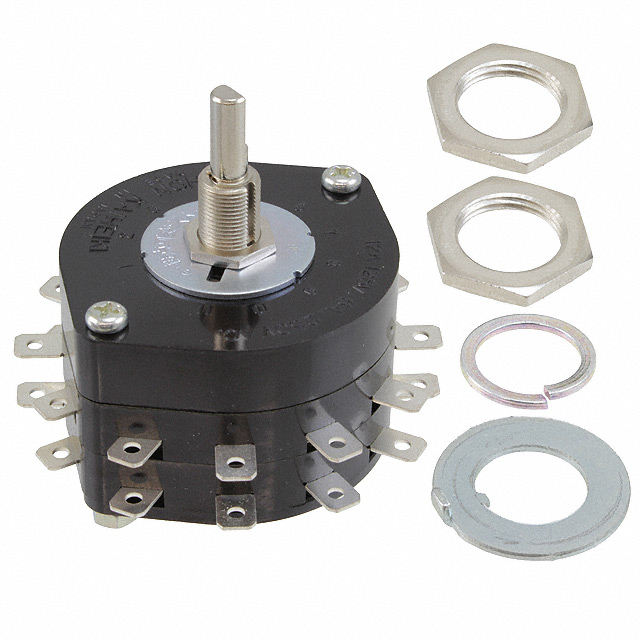

HS16-2SN

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HS16-2SN with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	HS16-2SN
Manufacturer	NKK Switches
Description	SWITCH ROTARY 2-11POS 12A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	50 pcs	100 pcs	250 pcs
~~In Stock~~ 4775 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs
	$9.551	$8.905	$8.775
	$8.646	$7.614	$7.356

Product parameter
Data sheet

Product parameter

Part Number	HS16-2SN	Manufacturer	NKK Switches
Description	SWITCH ROTARY 2-11POS 12A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4775 pcs	Data sheet	HS, TS, PS Series
Category	Switches	Voltage Rating - AC	125V
Termination Style	Solder Lug	Series	HS
Panel Cutout Dimensions	Circular - 10.30mm Dia	Other Names	360-3042 HS16-2SN-ND
Operating Force	60 ~ 70gfm	Number of Positions	2 ~ 11
Number of Poles per Deck	1	Number of Decks	2
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Index Stops	Adjustable	Features	-
Detailed Description	Rotary Switch 2 ~ 11 Position SP11T 12A (AC) 125VAC Panel Mount	Depth Behind Panel	41.50mm
Current Rating	12A (AC)	Contact Timing	Shorting (MBB)
Contact Material	Phosphor Bronze	Contact Finish	-
Circuit per Deck	SP11T	Angle of Throw	30°
Actuator Type	Flatted (6mm Dia)	Actuator Length	15.00mm
