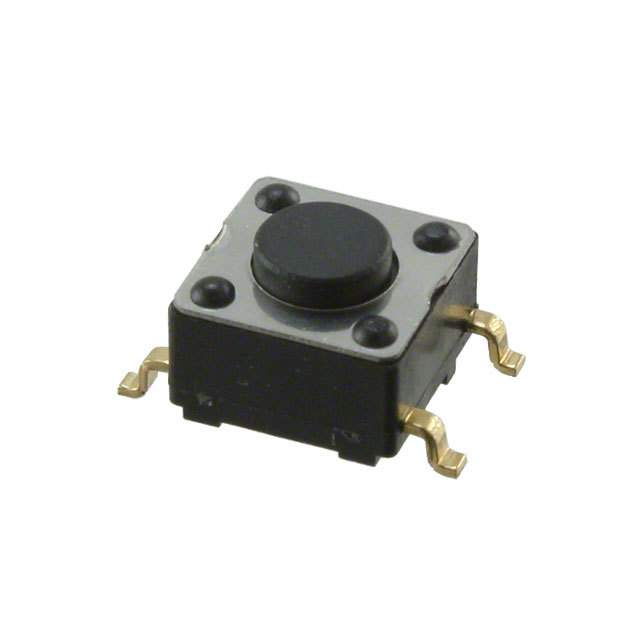

HP0315AFKP4-S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HP0315AFKP4-S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HP0315AFKP4-S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HP0315AFKP4-S |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH TACTILE SPST-NO 0.4VA 28V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.504 | $0.486 | $0.447 | $0.389 | $0.369 | |
| 300 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.359 | $0.35 | $0.272 | $0.253 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HP0315AFKP4-S | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.4VA 28V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 94023 pcs | Data sheet | HP03 Series 6mm SMT Tactiles |
| Category | Switches | Termination Style | Gull Wing |
| Switch Travel | 0.20mm | Switch Function | Off-Mom |
| Series | HP03 | Packaging | Tube |
| Outline | 6.20mm x 6.20mm | Other Names | 360-3280 HP0315AFKP4-S-ND HP0315AFKP4S |
| Operating Temperature | -20°C ~ 70°C | Operating Force | 160gf |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 500,000 Cycles | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | Sealed - Flux Protection |
| Detailed Description | Tactile Switch SPST-NO Top Actuated Surface Mount | Contact Rating @ Voltage | 0.4VA @ 28VAC/DC |
| Circuit | SPST-NO | Actuator Type | Standard |
| Actuator Orientation | Top Actuated | Actuator Material | Polyamide (PA), Nylon, Glass Filled |
| Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | 4.40mm |
