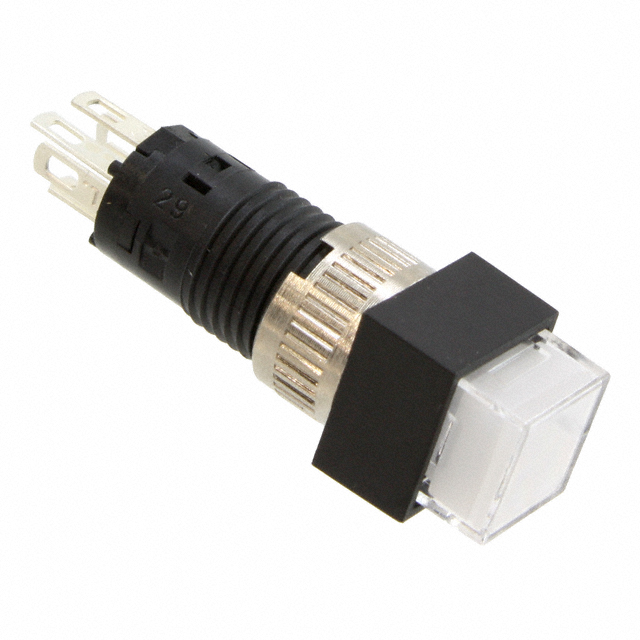

HB15SKW01-5F-JB
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HB15SKW01-5F-JB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HB15SKW01-5F-JB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HB15SKW01-5F-JB |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH PUSH SPDT 0.1A 30V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.883 | $2.671 | $2.60 | $2.53 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.39 | $2.319 | $2.179 | $1.968 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HB15SKW01-5F-JB | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH PUSH SPDT 0.1A 30V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20046 pcs | Data sheet | HB Series Pushbuttons |
| Category | Switches | Voltage Rating - DC | 30V |
| Voltage Rating - AC | 30V | Type | Standard, Illuminated |
| Termination Style | Solder Lug | Switch Function | On-Mom |
| Series | HB | Panel Cutout Dimensions | Circular - 8.00mm Dia |
| Packaging | Tray | Other Names | 360-2696 HB15SKW01-5F-JB-ND HB15SKW015FJB |
| Operating Temperature | -25°C ~ 50°C | Mounting Type | Panel Mount, Front |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 100,000 Cycles |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | 2.1 VDC |
| Illumination Type, Color | LED, Green | Features | - |
| Electrical Life | 50,000 Cycles | Detailed Description | Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front |
| Current Rating | 100mA (DC) | Color - Actuator/Cap | Clear (White Filter/Diffuser) |
| Circuit | SPDT | California Prop 65 | Warning Information WARNING: This product can expose you to chemicals including Antimony oxide (Antimony trioxide) and Nickel (Metallic) which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov. |
| Actuator Type | Square, Button |
