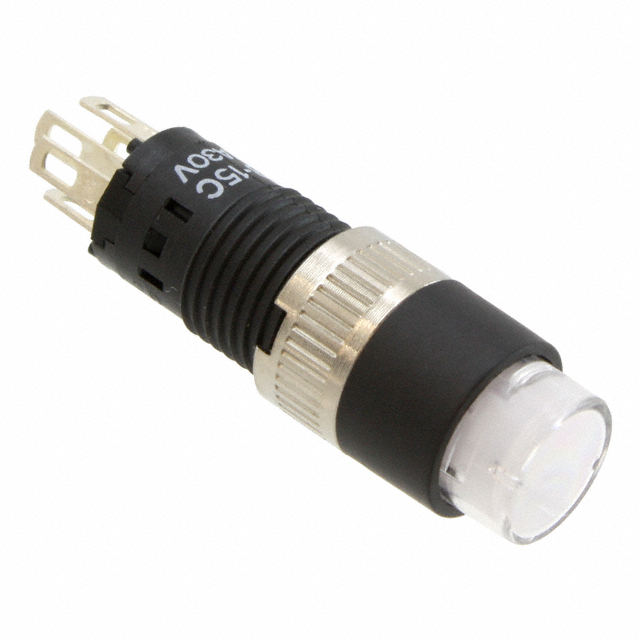

HB15CKW01-5C-JB
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HB15CKW01-5C-JB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HB15CKW01-5C-JB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HB15CKW01-5C-JB |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH PUSH SPDT 0.1A 30V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.96 | $2.743 | $2.67 | $2.598 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.454 | $2.382 | $2.237 | $2.021 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HB15CKW01-5C-JB | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH PUSH SPDT 0.1A 30V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17088 pcs | Data sheet | HB Series Pushbuttons |
| Category | Switches | Voltage Rating - DC | 30V |
| Voltage Rating - AC | 30V | Type | Standard, Illuminated |
| Termination Style | Solder Lug | Switch Function | On-Mom |
| Series | HB | Panel Cutout Dimensions | Circular - 8.00mm Dia |
| Packaging | Tray | Other Names | 360-2686 HB15CKW01-5C-JB-ND HB15CKW015CJB |
| Operating Temperature | -25°C ~ 50°C | Mounting Type | Panel Mount, Front |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 100,000 Cycles |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | 1.95 VDC |
| Illumination Type, Color | LED, Red | Features | - |
| Electrical Life | 50,000 Cycles | Detailed Description | Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front |
| Current Rating | 100mA (DC) | Color - Actuator/Cap | Clear (White Filter/Diffuser) |
| Circuit | SPDT | Actuator Type | Round, Button |
