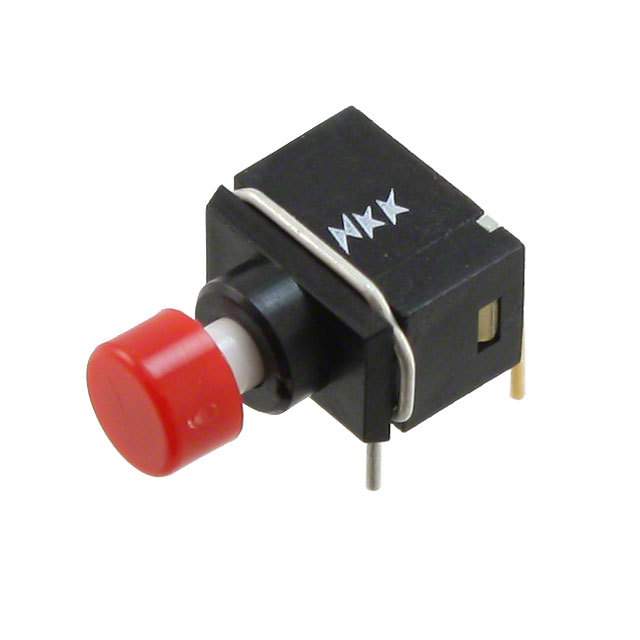

GB15AH-XC
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy GB15AH-XC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy GB15AH-XC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | GB15AH-XC |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH PUSH SPDT 0.4VA 28V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.984 | $1.888 | $1.794 | $1.747 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.70 | $1.605 | $1.511 | $1.369 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | GB15AH-XC | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH PUSH SPDT 0.4VA 28V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23074 pcs | Data sheet | GB Series Datasheet |
| Category | Switches | Voltage Rating - DC | 28V |
| Voltage Rating - AC | 28V | Type | Standard |
| Termination Style | PC Pin | Switch Function | On-Mom |
| Series | GB | Panel Cutout Dimensions | - |
| Packaging | Tray | Other Names | 360-2628 GB15AH-XC-ND GB15AH-XC-RO GB15AH-XC-RO-ND GB15AHXC |
| Operating Temperature | -30°C ~ 85°C | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 50,000 Cycles |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Features | - |
| Electrical Life | 50,000 Cycles | Detailed Description | Pushbutton Switch SPDT Standard Through Hole, Right Angle |
| Current Rating | 0.4VA (AC/DC) | Color - Actuator/Cap | Red |
| Circuit | SPDT | Actuator Type | Round, Button |
