Home > Products > Switches > Toggle Switches > G3T12AH

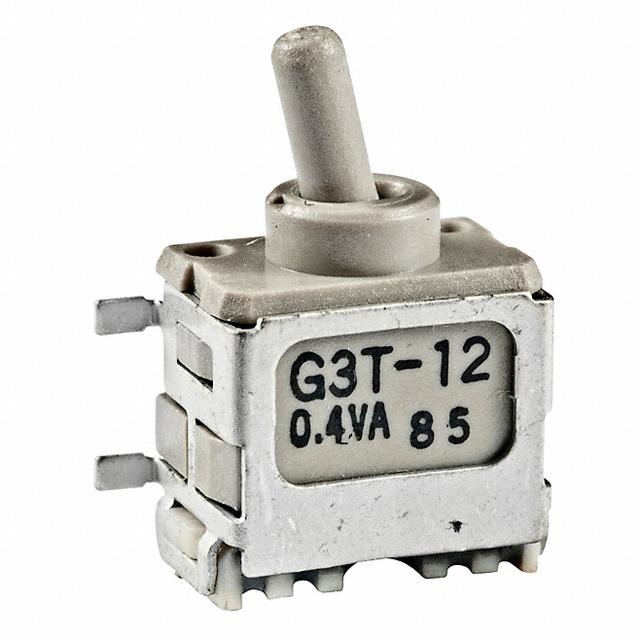

G3T12AH

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy G3T12AH with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	G3T12AH
Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 31624 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.663	$1.585	$1.546	$1.506
	$1.466	$1.348	$1.189	$1.07

Product parameter
Data sheet

Product parameter

Part Number	G3T12AH	Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	31624 pcs	Data sheet	G3T Series
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	Gull Wing
Switch Function	On-On	Series	G3T
Panel Cutout Dimensions	-	Packaging	Tray
Other Names	360-2794 G3T12AH-ND G3T12AH-RO G3T12AH-RO-ND	Operating Temperature	-30°C ~ 85°C
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Process Sealed	Electrical Life	50,000 Cycles
Detailed Description	Toggle Switch SPDT Surface Mount, Right Angle	Current Rating	0.4VA (AC/DC)
Circuit	SPDT	Bushing Thread	Unthreaded
Actuator Type	Standard Round	Actuator Material	Polyphenylene Sulfide (PPS)
Actuator Length	3.81mm
