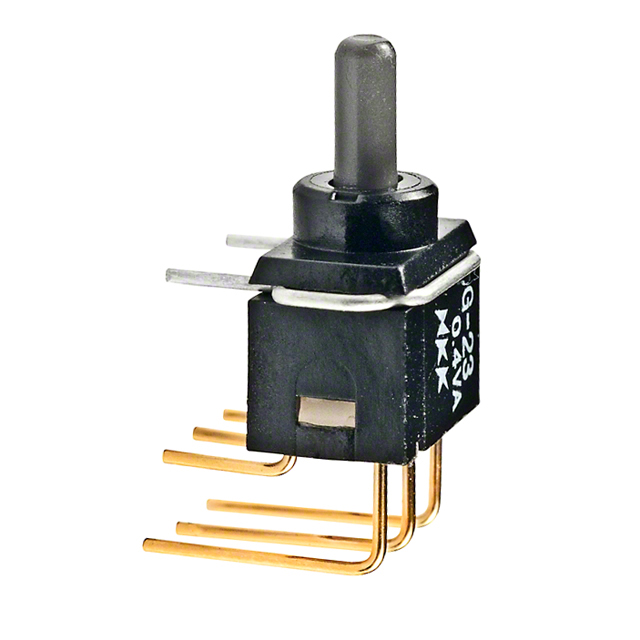

G23AH
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy G23AH with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy G23AH with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | G23AH |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH TOGGLE DPDT 0.4VA 28V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.264 | $2.151 | $2.094 | $2.038 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.981 | $1.868 | $1.585 | $1.50 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | G23AH | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH TOGGLE DPDT 0.4VA 28V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 25802 pcs | Data sheet | G Toggle Series Datasheet |
| Category | Switches | Voltage Rating - DC | 28V |
| Voltage Rating - AC | 28V | Termination Style | PC Pin |
| Switch Function | On-Off-On | Series | G |
| Panel Cutout Dimensions | - | Packaging | Bulk |
| Other Names | G23AH-RO G23AH-RO-ND |
Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Illumination | Non-Illuminated |
| Features | Process Sealed | Electrical Life | 100,000 Cycles |
| Detailed Description | Toggle Switch DPDT Through Hole, Right Angle | Current Rating | 0.4VA (AC/DC) |
| Circuit | DPDT | Bushing Thread | Unthreaded |
| Actuator Type | Standard Round | Actuator Material | Polyamide (PA), Nylon, Glass Filled |
| Actuator Length | 3.80mm |
