Home > Products > Switches > Toggle Switches > D22012P

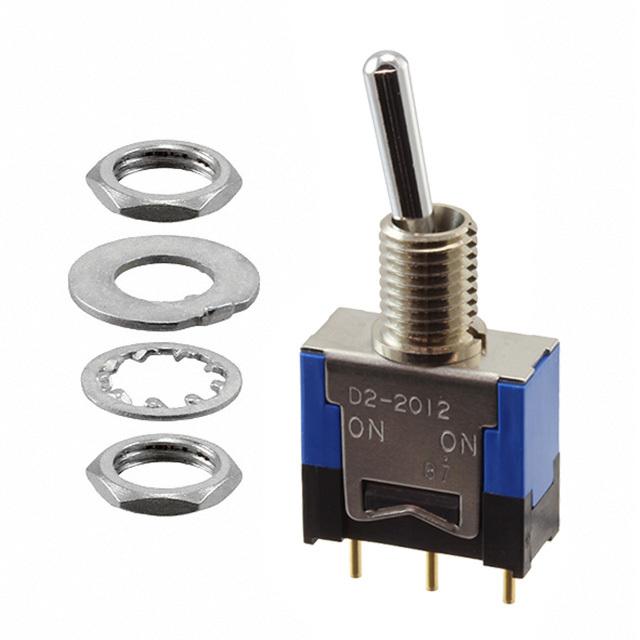

D22012P

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D22012P with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	D22012P
Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPDT 0.4VA 48V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 37172 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.616	$1.538	$1.50	$1.461
	$1.423	$1.307	$1.154	$1.038

Product parameter
Data sheet

Product parameter

Part Number	D22012P	Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPDT 0.4VA 48V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	37172 pcs	Data sheet	D2 Series Datasheet
Category	Switches	Voltage Rating - DC	48V
Voltage Rating - AC	48V	Termination Style	PC Pin
Switch Function	On-On	Series	D2
Panel Cutout Dimensions	Circular - 6.50mm Dia	Packaging	Bulk
Other Names	360-3754 D22012P-ND	Operating Temperature	-10°C ~ 70°C
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	5 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	-	Electrical Life	50,000 Cycles
Detailed Description	Toggle Switch SPDT Panel Mount	Current Rating	0.4VA (AC/DC)
Circuit	SPDT	Bushing Thread	M6 x 0.75
Actuator Type	Standard Round	Actuator Material	Brass, Chrome Plated
Actuator Length	10.50mm
