Home > Products > Switches > Keylock Switches > CKM12BTW01-020

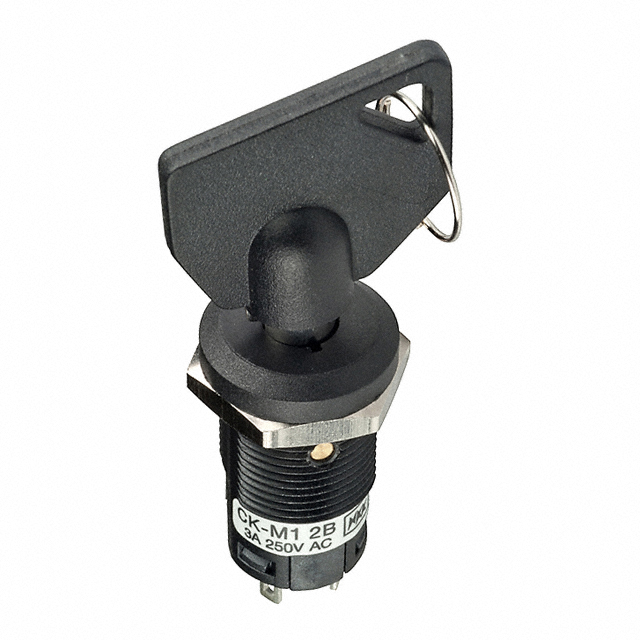

CKM12BTW01-020

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CKM12BTW01-020 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	CKM12BTW01-020
Manufacturer	NKK Switches
Description	SWITCH KEYLOCK 2POS SPDT 3A 250V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 7510 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$4.884

Product parameter
Data sheet

Product parameter

Part Number	CKM12BTW01-020	Manufacturer	NKK Switches
Description	SWITCH KEYLOCK 2POS SPDT 3A 250V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7510 pcs	Data sheet	CK Series Datasheet
Category	Switches	Voltage Rating - AC	250V
Termination Style	Solder Lug	Switch Function	On-On
Series	CK	Panel Cutout Dimensions	Circular - 16.00mm Dia
Other Names	Q4471690	Operating Temperature	-25°C ~ 70°C
Number of Positions	2	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	30,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Key Removable Positions	1 only
Features	Epoxy Sealed Terminals	Electrical Life	10,000 Cycles
Detailed Description	Keylock Switch 2 Position SPDT 3A (AC) 250VAC Panel Mount	Depth Behind Flange	31.20mm
Current Rating	3A (AC)	Contact Timing	Non-Shorting (BBM)
Contact Material	Silver (Ag)	Contact Finish	Silver
Circuit	SPDT	Angle of Throw	90°
Actuator Type	Tubular Key
