Home > Products > Switches > Keylock Switches > CKL13EFW01

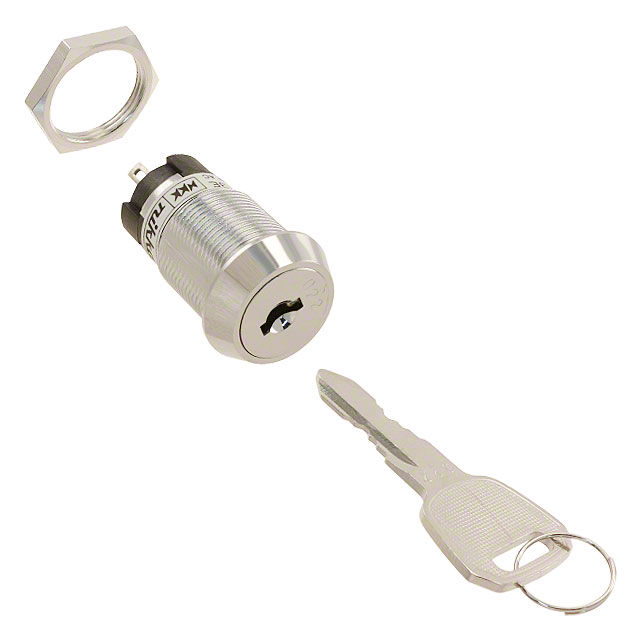

CKL13EFW01

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CKL13EFW01 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	CKL13EFW01
Manufacturer	NKK Switches
Description	SWITCH KEYLOCK 3POS SPDT 3A 250V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 10092 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$5.088	$4.82	$4.686	$4.552
	$4.017	$3.749	$3.682

Product parameter
Data sheet

Product parameter

Part Number	CKL13EFW01	Manufacturer	NKK Switches
Description	SWITCH KEYLOCK 3POS SPDT 3A 250V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10092 pcs	Data sheet	CK Series Datasheet
Category	Switches	Voltage Rating - AC	250V
Termination Style	Solder Lug	Switch Function	On-Off-On
Series	CK	Panel Cutout Dimensions	Circular - 19.00mm Dia
Other Names	360-1455	Operating Temperature	-25°C ~ 70°C
Number of Positions	3	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	30,000 Cycles
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Key Removable Positions	2 only	Features	Epoxy Sealed Terminals
Electrical Life	10,000 Cycles	Detailed Description	Keylock Switch 3 Position SPDT 3A (AC) 250VAC Panel Mount
Depth Behind Flange	34.60mm	Current Rating	3A (AC)
Contact Timing	Non-Shorting (BBM)	Contact Material	Silver (Ag)
Contact Finish	Silver	Circuit	SPDT
Angle of Throw	45°	Actuator Type	Flat Key
