Home > Products > Switches > Keylock Switches > CKL12BTW01-008

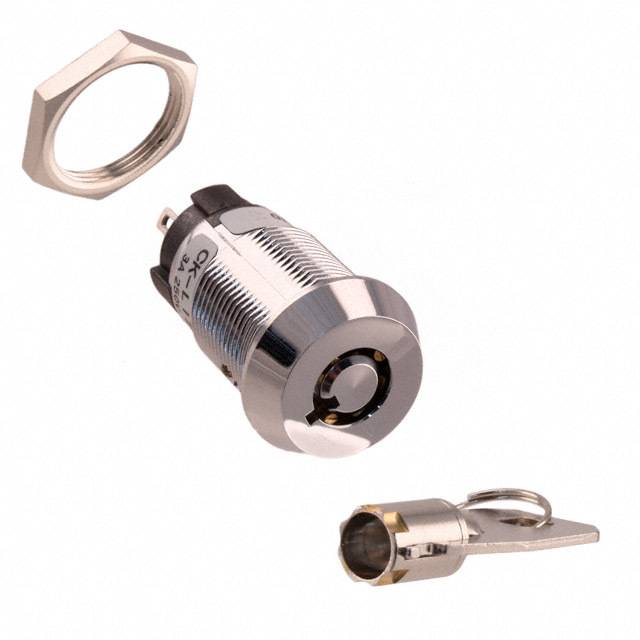

CKL12BTW01-008

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CKL12BTW01-008 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	CKL12BTW01-008
Manufacturer	NKK Switches
Description	SWITCH KEYLOCK 2POS SPDT 3A 250V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 6671 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$4.91

Product parameter
Data sheet

Product parameter

Part Number	CKL12BTW01-008	Manufacturer	NKK Switches
Description	SWITCH KEYLOCK 2POS SPDT 3A 250V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6671 pcs	Data sheet	CK Series Datasheet
Category	Switches	Voltage Rating - AC	250V
Termination Style	Solder Lug	Switch Function	On-On
Series	CK	Panel Cutout Dimensions	Circular - 19.00mm Dia
Other Names	360-2557 CKL12BTW01-008-ND CKL12BTW01008	Operating Temperature	-25°C ~ 70°C
Number of Positions	2	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	30,000 Cycles
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Key Removable Positions	1 only	Features	Epoxy Sealed Terminals
Electrical Life	10,000 Cycles	Detailed Description	Keylock Switch 2 Position SPDT 3A (AC) 250VAC Panel Mount
Depth Behind Flange	34.60mm	Current Rating	3A (AC)
Contact Timing	Non-Shorting (BBM)	Contact Material	Silver (Ag)
Contact Finish	Silver	Circuit	SPDT
Angle of Throw	90°	Actuator Type	Tubular Key
