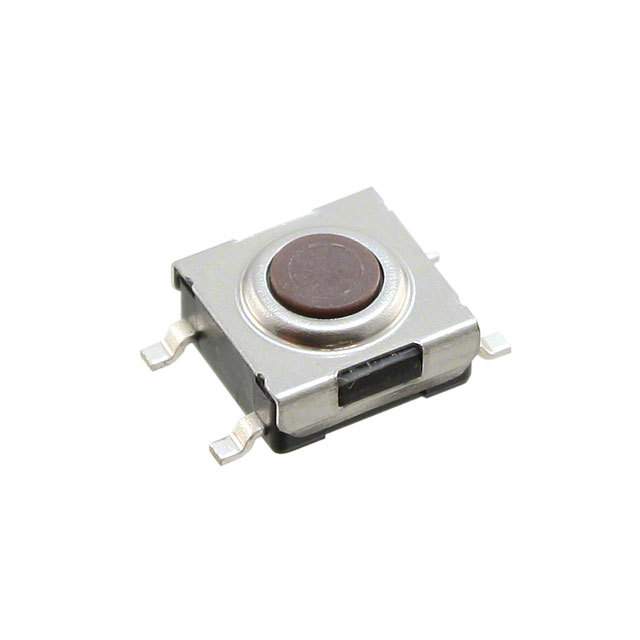

CB315FP-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CB315FP-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CB315FP-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CB315FP-R |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH TACTILE SPST-NO 0.05A 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 5000 pcs | |||
|---|---|---|---|---|---|
| $0.283 | $0.263 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CB315FP-R | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 86273 pcs | Data sheet | CB315 Series Tactile Datasheet |
| Category | Switches | Termination Style | Gull Wing |
| Switch Travel | 0.25mm | Switch Function | Off-Mom |
| Series | CB3 | Packaging | Tape & Reel (TR) |
| Outline | 6.20mm x 6.20mm | Other Names | 360-2591-2 CB315FP-R-ND CB315FPR |
| Operating Temperature | -25°C ~ 70°C | Operating Force | 157gf |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 100,000 Cycles | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | Sealed - Fully |
| Detailed Description | Tactile Switch SPST-NO Top Actuated Surface Mount | Contact Rating @ Voltage | 0.05A @ 24VDC |
| Circuit | SPST-NO | Actuator Type | Standard |
| Actuator Orientation | Top Actuated | Actuator Material | Polyamide (PA), Nylon, Glass Filled |
| Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | 3.10mm |
