CB15FP-S

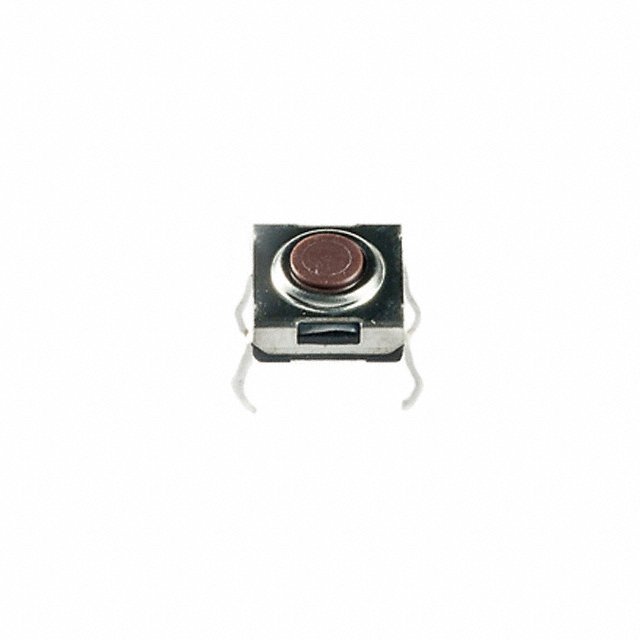

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CB15FP-S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CB15FP-S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CB15FP-S |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH TACTILE SPST-NO 0.05A 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.443 | $0.426 | $0.392 | $0.34 | $0.323 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.315 | $0.306 | $0.238 | $0.221 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | CB15FP-S | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 93017 pcs | Data sheet | CB Series Tactile Datasheet |
| Category | Switches | Termination Style | PC Pin |
| Switch Travel | 0.25mm | Switch Function | Off-Mom |
| Series | CB | Packaging | Tube |
| Outline | 6.20mm x 6.20mm | Other Names | 360-2777 CB15FP-S-ND CB15FPS |
| Operating Temperature | -25°C ~ 70°C | Operating Force | 157gf |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 100,000 Cycles | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | Sealed - Fully |
| Detailed Description | Tactile Switch SPST-NO Top Actuated Through Hole | Contact Rating @ Voltage | 0.05A @ 24VDC |
| Circuit | SPST-NO | Actuator Type | Standard |
| Actuator Orientation | Top Actuated | Actuator Material | Polyamide (PA), Nylon, Glass Filled |
| Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | 3.10mm |
