Home > Products > Switches > Pushbutton Switches > BB16AH

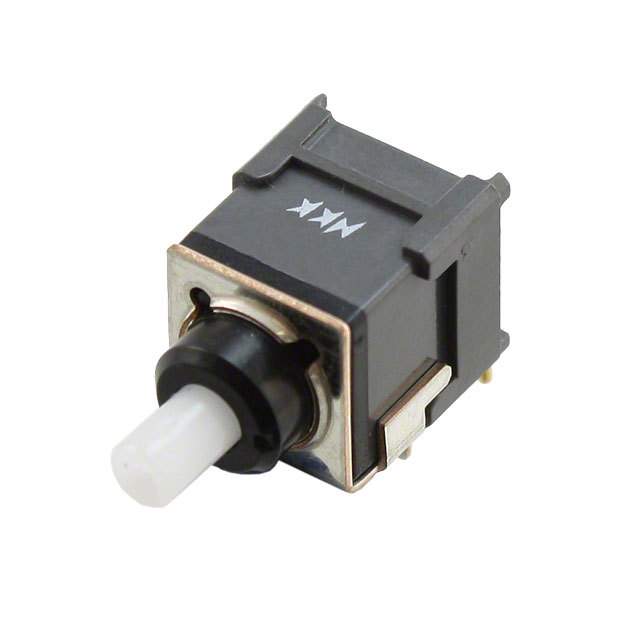

BB16AH

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BB16AH with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BB16AH
Manufacturer	NKK Switches
Description	SWITCH PUSH SPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 30785 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.571	$1.497	$1.422	$1.384
	$1.347	$1.272	$1.197	$1.085

Product parameter
Data sheet

Product parameter

Part Number	BB16AH	Manufacturer	NKK Switches
Description	SWITCH PUSH SPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	30785 pcs	Data sheet	BB Series Pushbutton Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Type	Standard
Termination Style	PC Pin	Switch Function	On-On
Series	BB	Panel Cutout Dimensions	-
Packaging	Tray	Other Names	360-2621 BB16AH-ND BB16AH-RO BB16AH-RO-ND
Operating Temperature	-30°C ~ 85°C	Mounting Type	Through Hole, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	25,000 Cycles
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	Antistatic
Electrical Life	25,000 Cycles	Detailed Description	Pushbutton Switch SPDT Standard Through Hole, Right Angle
Current Rating	0.4VA (AC/DC)	Color - Actuator/Cap	White
Circuit	SPDT	Actuator Type	Plunger for Cap
