Home > Products > Switches > Toggle Switches > B22KV-AC

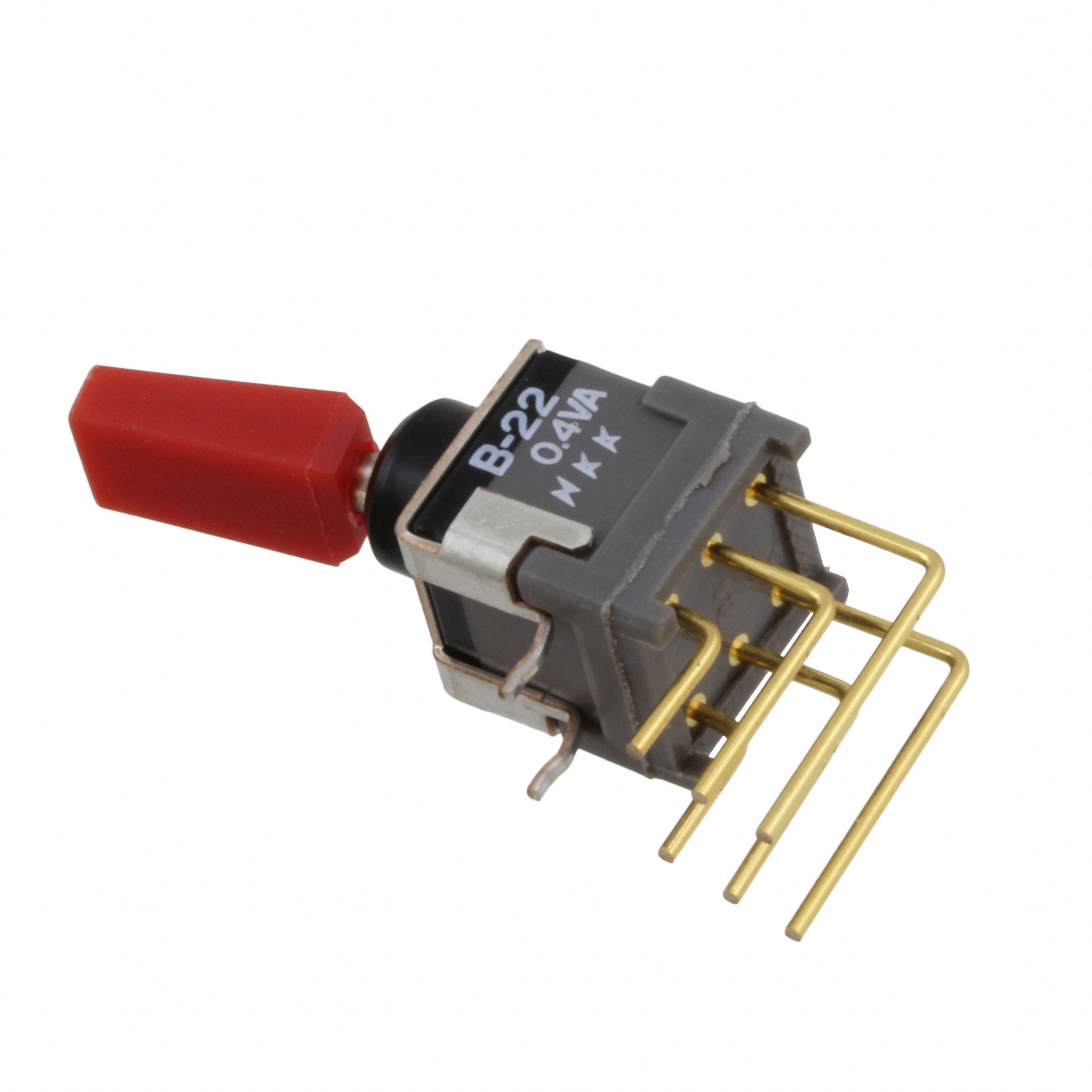

B22KV-AC

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B22KV-AC with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B22KV-AC
Manufacturer	NKK Switches
Description	SWITCH TOGGLE DPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 29888 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.978	$1.88	$1.83	$1.781
	$1.731	$1.632	$1.385	$1.311

Product parameter
Data sheet

Product parameter

Part Number	B22KV-AC	Manufacturer	NKK Switches
Description	SWITCH TOGGLE DPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	29888 pcs	Data sheet	B Series Toggle Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	PC Pin
Switch Function	On-On	Series	B
Panel Cutout Dimensions	-	Packaging	Bulk
Operating Temperature	-30°C ~ 85°C	Mounting Type	Through Hole, Right Angle, Vertical
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Red Actuator	Electrical Life	50,000 Cycles
Detailed Description	Toggle Switch DPDT Through Hole, Right Angle, Vertical	Current Rating	0.4VA (AC/DC)
Circuit	DPDT	Bushing Thread	Unthreaded
Actuator Type	Snap On Paddle	Actuator Material	Brass, Nickel Plated
Actuator Length	9.40mm
