Home > Products > Switches > Toggle Switches > B19JH

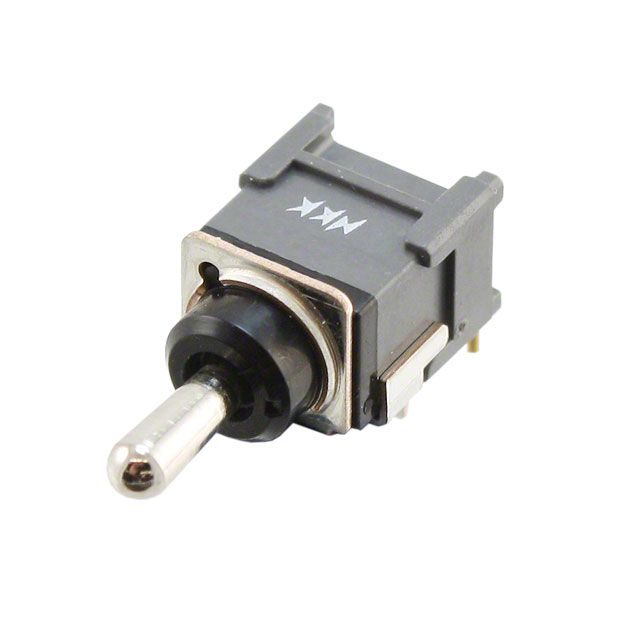

B19JH

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B19JH with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B19JH
Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 22422 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$1.531

Product parameter
Data sheet

Product parameter

Part Number	B19JH	Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	22422 pcs	Data sheet	B Series Toggle Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	PC Pin
Switch Function	On-Off-Mom	Series	B
Panel Cutout Dimensions	-	Packaging	Bulk
Other Names	360-2615 B19JH-ND B19JH-RO B19JH-RO-ND	Operating Temperature	-30°C ~ 85°C
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Epoxy Sealed Terminals	Electrical Life	50,000 Cycles
Detailed Description	Toggle Switch SPDT Through Hole, Right Angle	Current Rating	0.4VA (AC/DC)
Circuit	SPDT	Bushing Thread	Unthreaded
Actuator Type	Standard Round	Actuator Material	Brass, Nickel Plated
Actuator Length	6.30mm
