Home > Products > Switches > Toggle Switches > B13AB

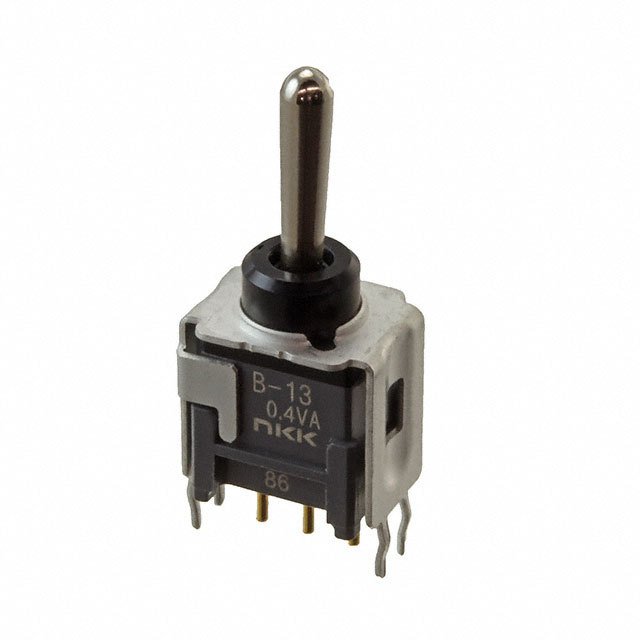

B13AB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B13AB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B13AB
Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 38493 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.429	$1.37	$1.311	$1.251
	$1.132	$1.043	$0.953	$0.834

Product parameter
Data sheet

Product parameter

Part Number	B13AB	Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	38493 pcs	Data sheet	B Series Toggle Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	PC Pin
Switch Function	On-Off-On	Series	B
Panel Cutout Dimensions	-	Packaging	Bulk
Other Names	360-3734 B13AB-ND B13AB-RO B13AB-RO-ND	Operating Temperature	-30°C ~ 85°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	5 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Epoxy Sealed Terminals	Electrical Life	50,000 Cycles
Detailed Description	Toggle Switch SPDT Through Hole	Current Rating	0.4VA (AC/DC)
Circuit	SPDT	Bushing Thread	Unthreaded
Actuator Type	Standard Round	Actuator Material	Brass, Nickel Plated
Actuator Length	10.00mm
