Home > Products > Switches > Slide Switches > AS12CH

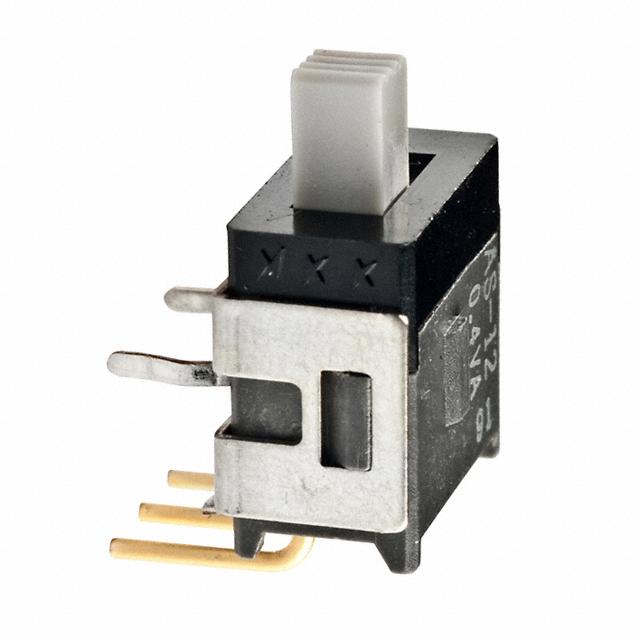

AS12CH

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AS12CH with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	AS12CH
Manufacturer	NKK Switches
Description	SWITCH SLIDE SPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 41688 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.492	$1.458	$1.393	$1.231
	$1.215	$1.199	$0.988	$0.923

Product parameter
Data sheet

Product parameter

Part Number	AS12CH	Manufacturer	NKK Switches
Description	SWITCH SLIDE SPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	41688 pcs	Data sheet	AS Series Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	PC Pin
Switch Travel	2.50mm	Switch Function	On-On
Series	AS	Packaging	Tray
Other Names	360-2745 AS12CH-ND AS12CH-RO AS12CH-RO-ND	Operating Temperature	-30°C ~ 85°C
Operating Force	260gf	Mounting Type	Through Hole, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	50,000 Cycles
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Epoxy Sealed Terminals	Electrical Life	50,000 Cycles
Detailed Description	Slide Switch SPDT Through Hole, Right Angle	Current Rating	0.4VA (AC/DC)
Contact Timing	Non-Shorting (BBM)	Contact Material	Phosphor Bronze
Contact Finish	Gold	Circuit	SPDT
Actuator Type	Standard	Actuator Material	Polyamide (PA), Nylon, Glass Filled
Actuator Length	3.80mm
